WT M3 000 12 005
ITP P/N:
WTM300012005
11
Suitable for Zeiss: 626103-6110-006
Suitable for Zeiss: 626103-6110-006
WT M3 000 12 005
ITP P/N:
WTM300012005
Adapters / Holders; base: titanium
Cubes are important components in metrology that allow flexible and accurate positioning of probes. They are particularly useful for building L-shaped and multi-arm probes, which have a wide range of applications in different measurement configurations. The ability to screw or clamp probes provides additional adaptability to specific requirements.

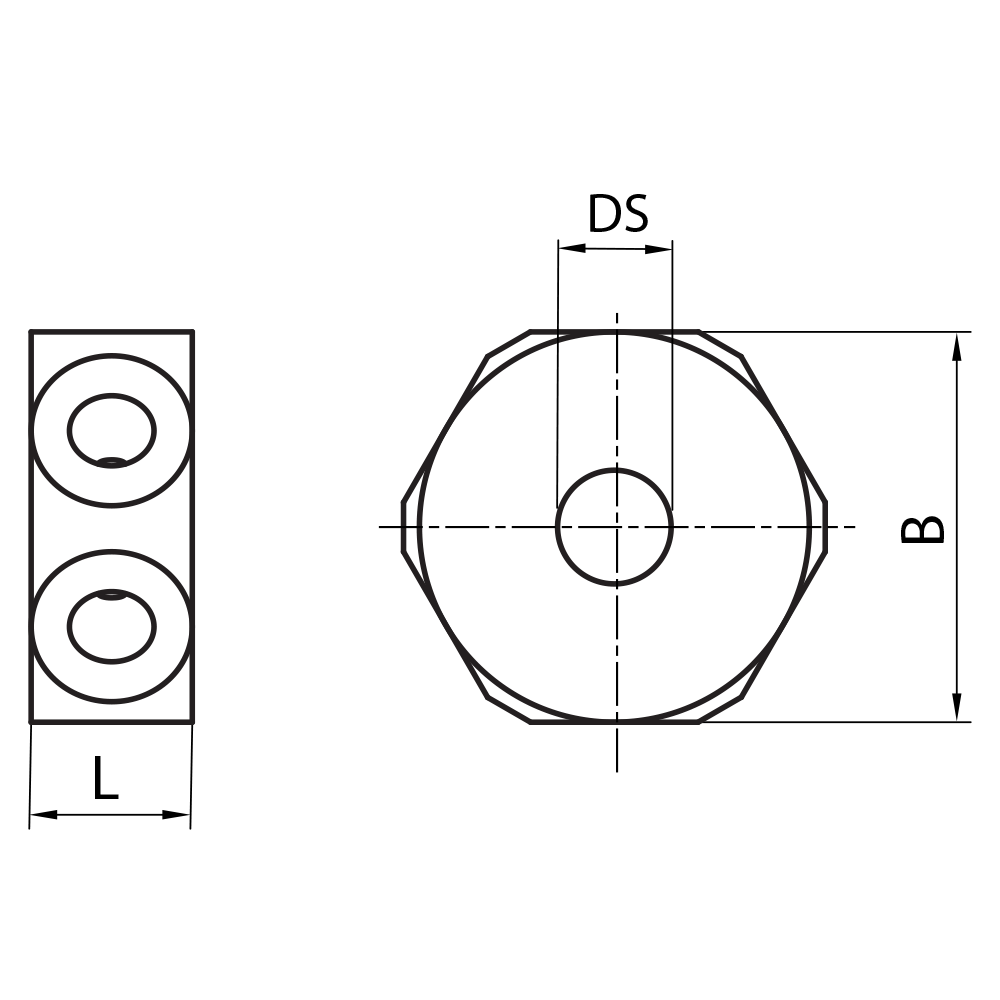

| Thread size: | M3 XXT |
|---|---|
| L: | 5.0 |
| DS: | 3.5 |
| B: | 12.0 |
| Base Material: | titanium |
| Weight: | 1.8 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626103-6110-006 |
