WT M3 000 05 013
ITP P/N:
WTM300005013
11
Suitable for Zeiss: 626103-6110-003
Suitable for Zeiss: 626103-6110-003
WT M3 000 05 013
ITP P/N:
WTM300005013
€57.00*
Available in 14 days, delivery time 1-3 days

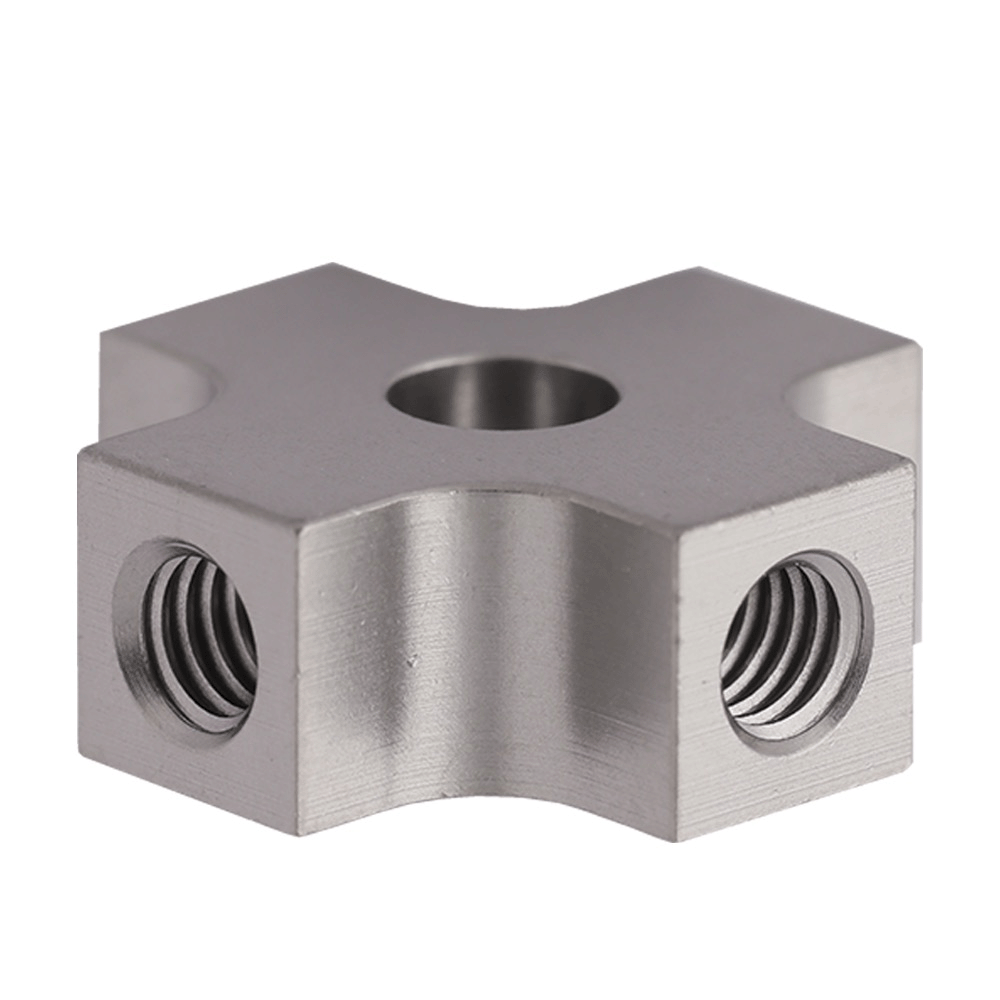

Adapters / Holders; base: titanium
Cubes are important components in metrology that allow flexible and accurate positioning of probes. They are particularly useful for building L-shaped and multi-arm probes, which have a wide range of applications in different measurement configurations. The ability to screw or clamp probes provides additional adaptability to specific requirements.

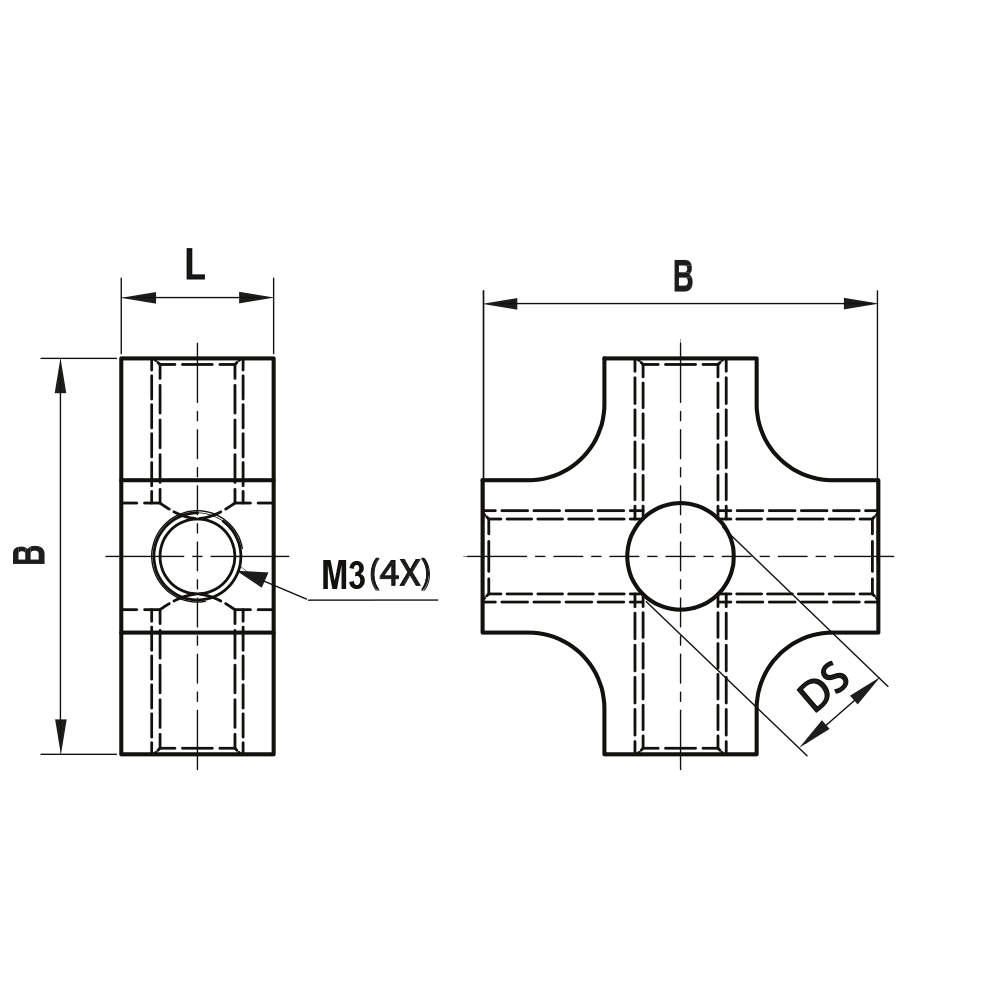

| Thread size: | M3 XXT |
|---|---|
| L: | 5.0 |
| DS: | 3.5 |
| B: | 13.0 |
| Base Material: | titanium |
| Weight: | 1.7 |
| Compatible with: | Hexagon, Zeiss |
| Zeiss No.: | 626103-6110-003 |
| Hexagon-No.: | M00-694-243-000 |
