VC M3 000 05 050
ITP P/N:
VCM300005050
11
Suitable for Zeiss: 626103-5050-000
Suitable for Zeiss: 626103-5050-000
VC M3 000 05 050
ITP P/N:
VCM300005050
€63.00*
Available, ready for shipment 1-3 days

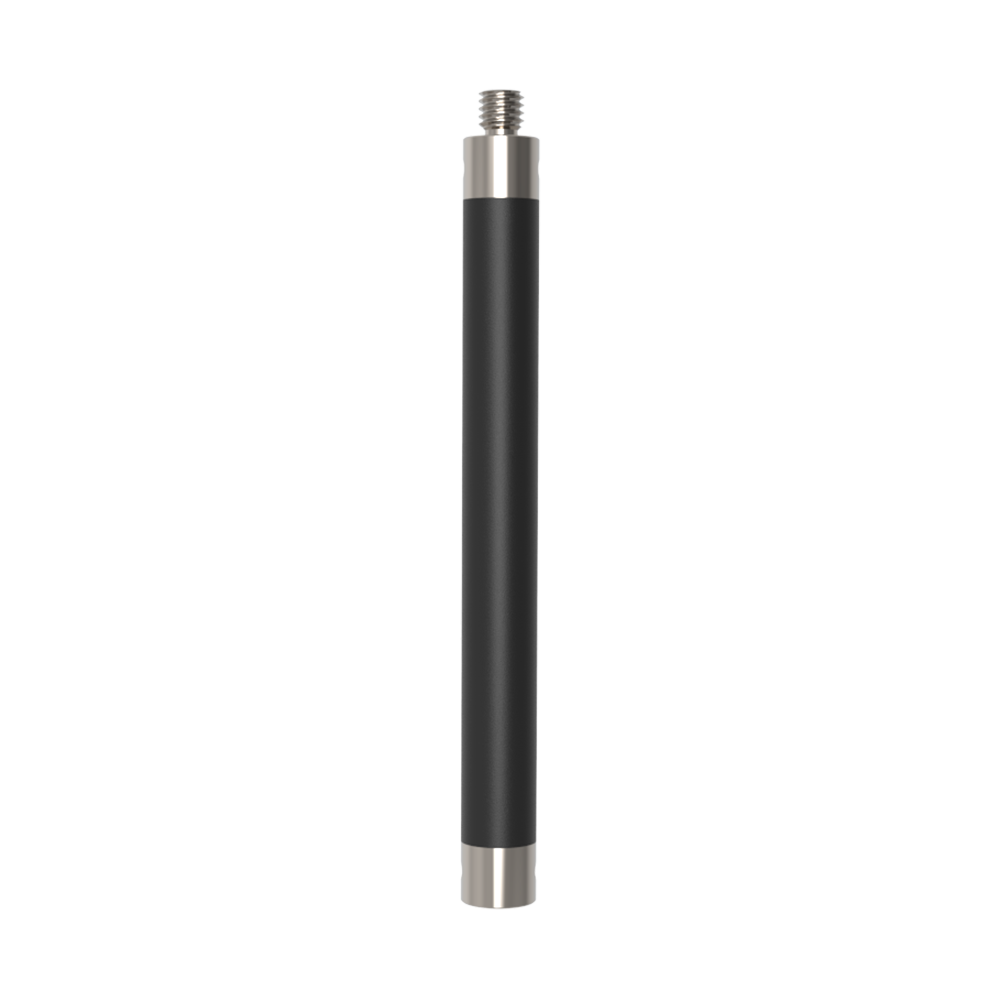

Extensions; base: titanium; stem: carbon fiber
Stylus extension with carbon fibre stem and stainless steel tips. Carbon fibre combines the best properties that are most important in metrology. These include extreme bending and torsional stiffness, very low weight and a very low negative coefficient of expansion.

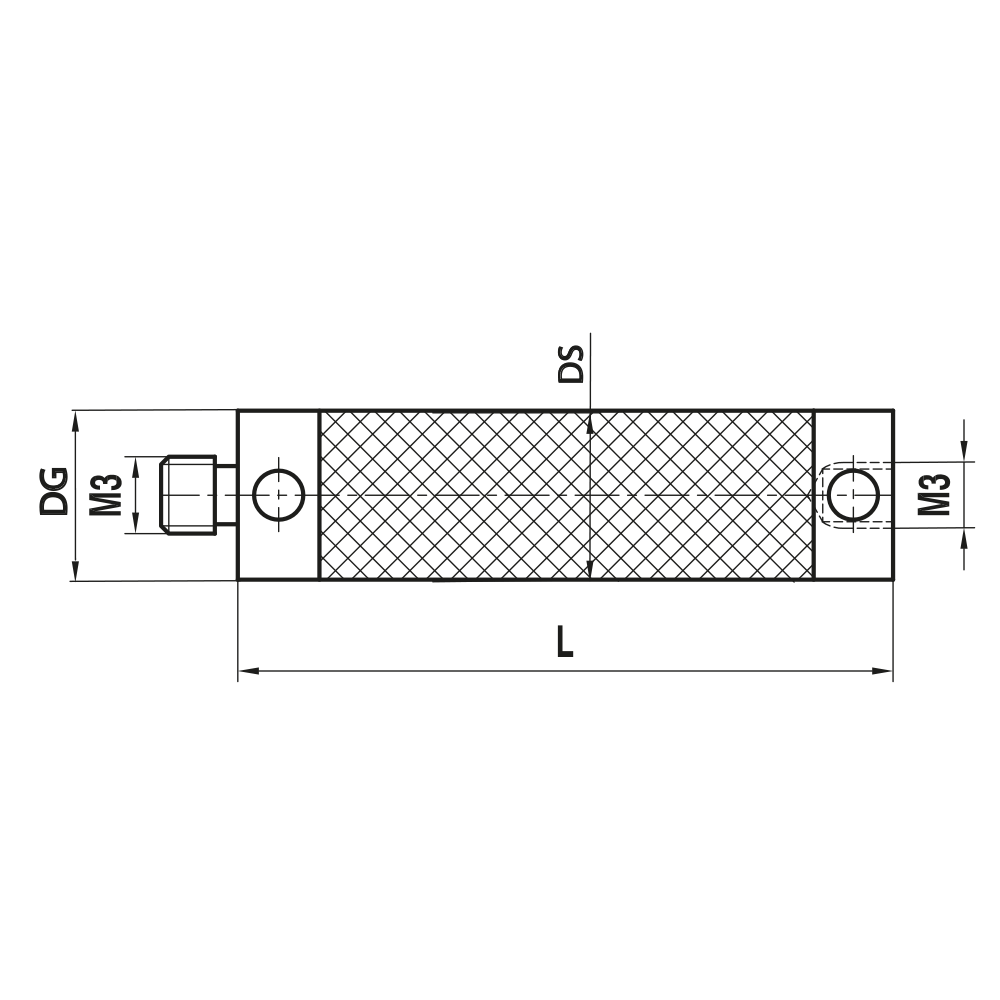

| Thread size: | M3 XXT |
|---|---|
| L: | 50.0 |
| DG: | 5.0 |
| DS: | 5.0 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Weight: | 1.7 |
| Compatible with: | Hexagon, Zeiss |
| Zeiss No.: | 626103-5050-000 |
| Hexagon-No.: | M00-694-245-000 |
