TI M2 040 03 022
ITP P/N:
TIM204003022
11
Suitable for Zeiss: 626102-0454-022, 626120-0069-000
Suitable for Zeiss: 626102-0454-022, 626120-0069-000
TI M2 040 03 022
ITP P/N:
TIM204003022
€25.00*
Available, ready for shipment 1-3 days

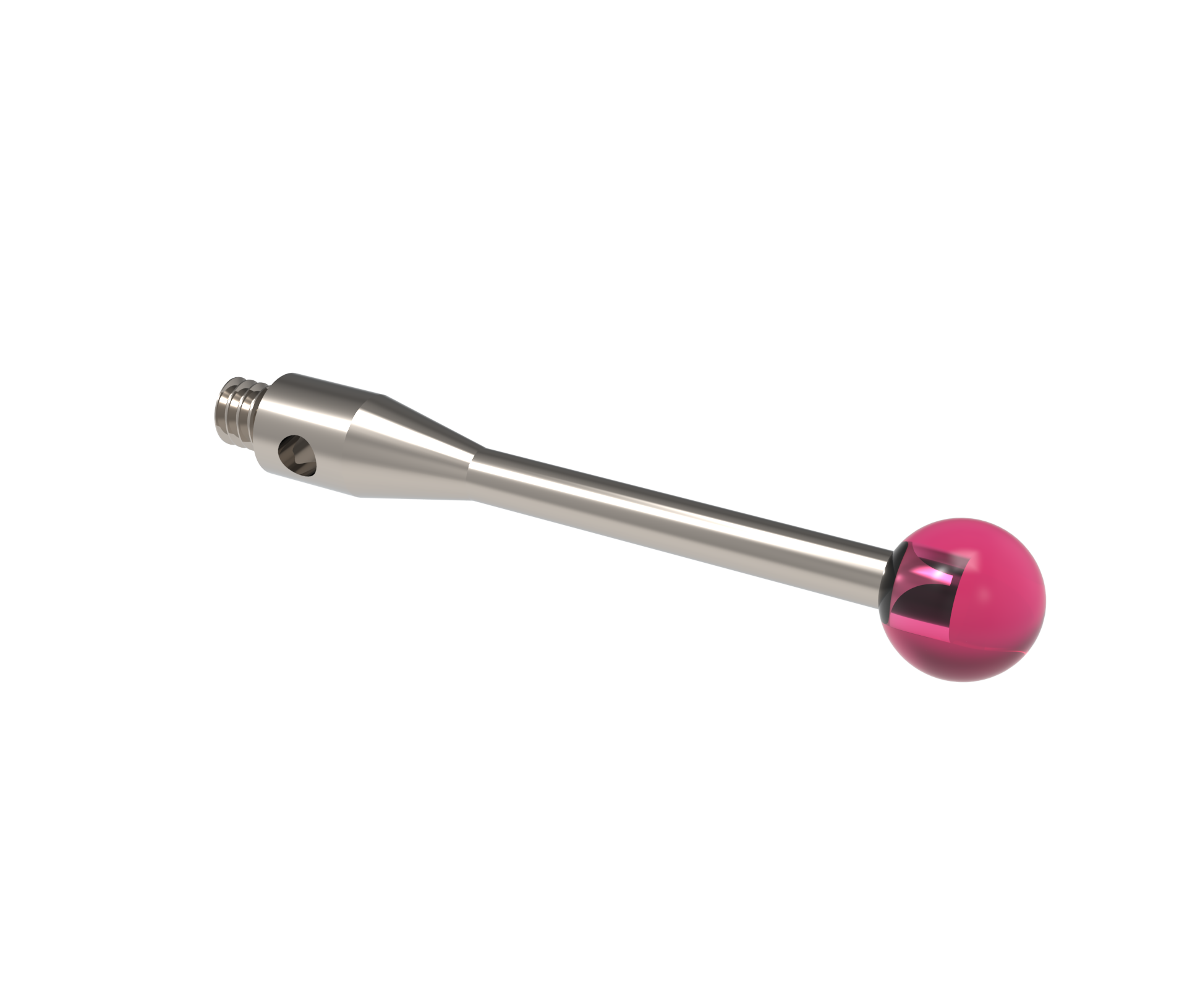

Straight Styli; base: stainless steel; stem: stainless steel; ball: ruby
Straight stylus in the lower price segment for daily standard use.
The stainless steel stem offers high rigidity at a slightly higher weight. Ruby is considered an all-round material for styli in tactile 3D measurement technology. In this combination, probes with ruby balls Ø1,0mm to 8,0mm are available. Special sizes can be requested via the configurator or by e-mail.

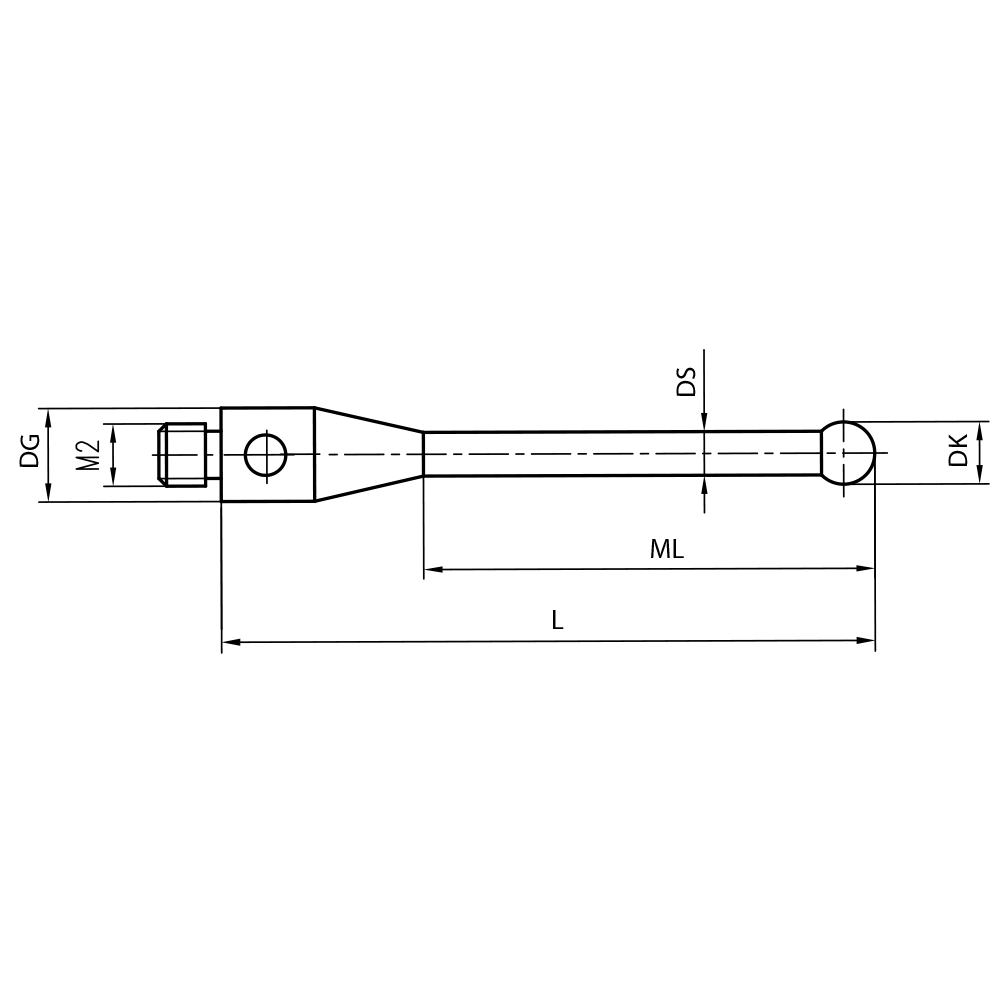

| Thread size: | M2 |
|---|---|
| DK: | 4.0 |
| L: | 22.0 |
| DG: | 3.0 |
| ML: | 15.0 |
| DS: | 1.5 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Weight: | 0.6 |
| Compatible with: | Hexagon, Mitutoyo, Renishaw, Zeiss |
| Zeiss No.: | 626102-0454-022, 626120-0069-000 |
| Renishaw-No.: | A-5000-4161 |
| Hexagon-No.: | 03969214 |
| Mitutoyo-No.: | K651022 |
