TH M3 015 05 020
ITP P/N:
THM301505020
11
Suitable for Zeiss: 626113-0150-020
Suitable for Zeiss: 626113-0150-020
TH M3 015 05 020
ITP P/N:
THM301505020
€35.00*
Available, ready for shipment 1-3 days

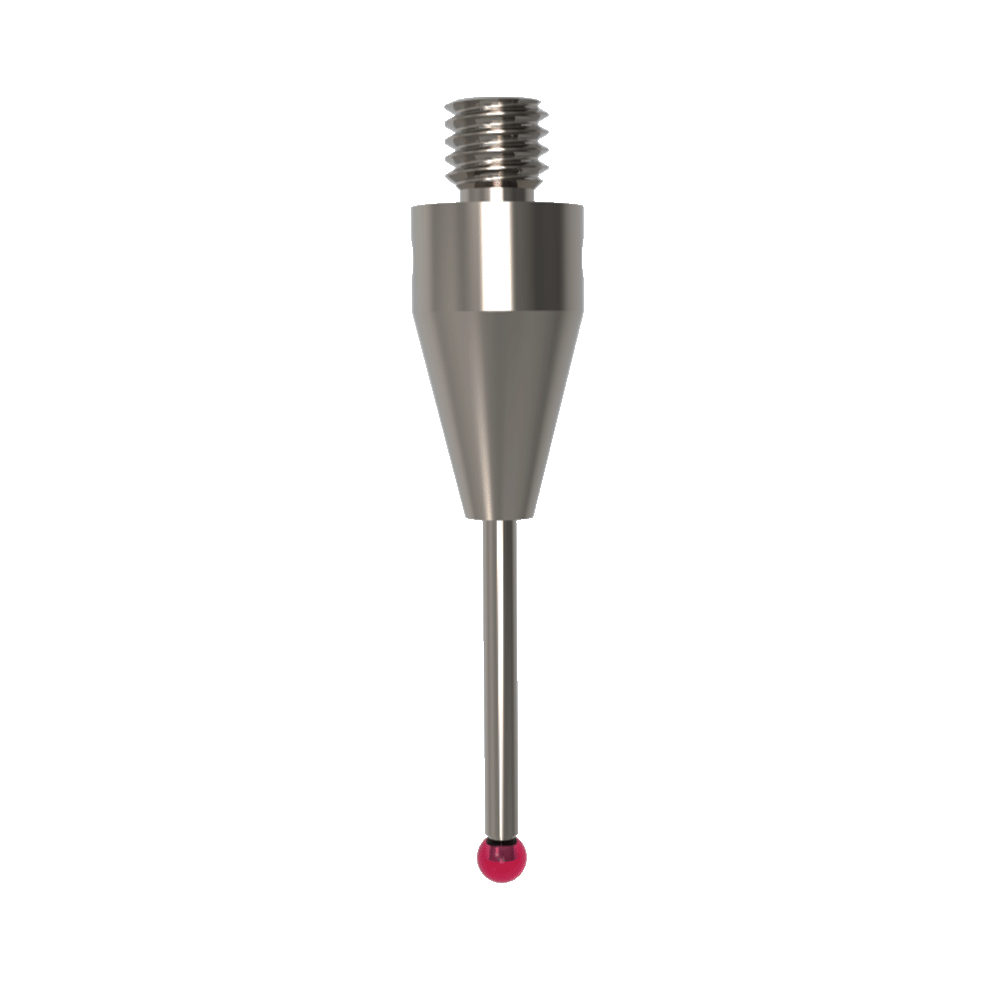

Straight Styli; base: titanium; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The special feature of this stylus is the Ø5,0 mm holder made of titanium.
The carbide stem with its extreme rigidity enables a wide range of dimensions. Ruby balls of the highest quality from Ø0,8mm to Ø2,5mm are used for these styli.
Further sizes can be requested via the configurator or by e-mail.

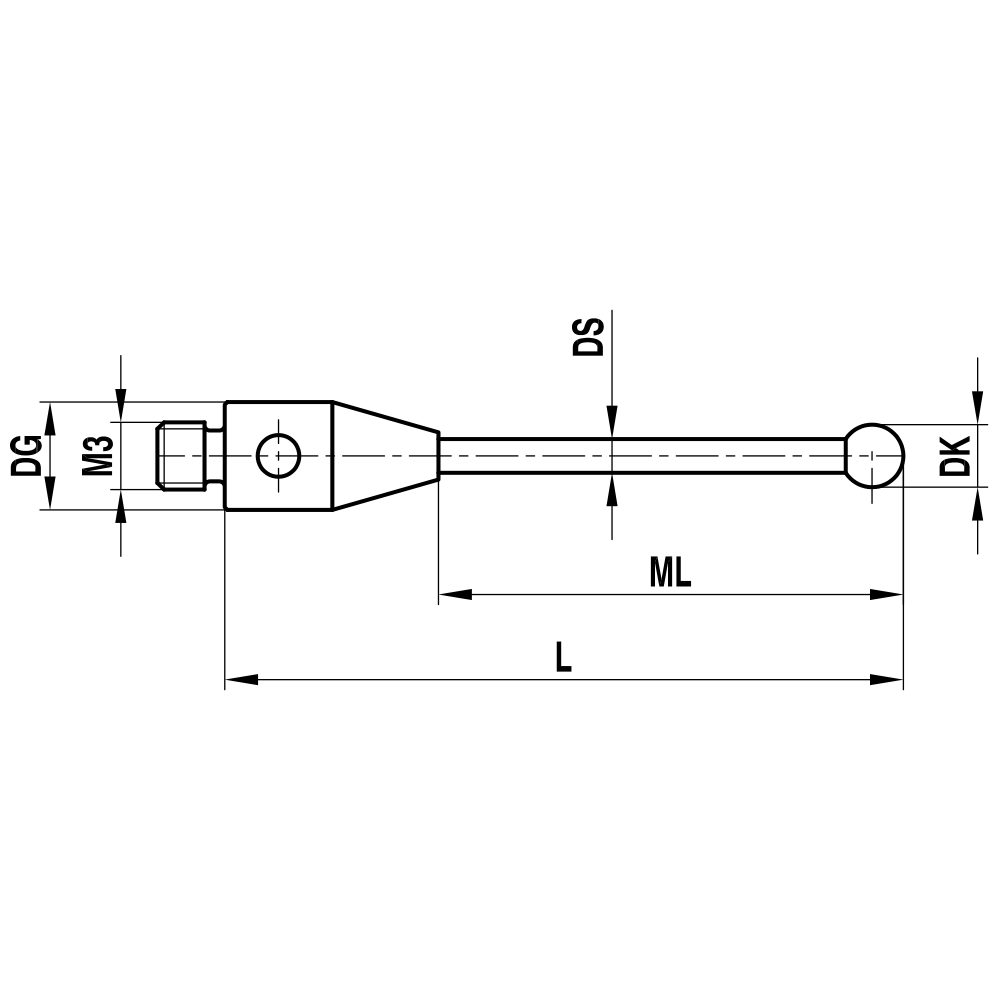

| Thread size: | M3 XXT |
|---|---|
| DK: | 1.5 |
| L: | 20.0 |
| DG: | 5.0 |
| ML: | 11.0 |
| DS: | 1.0 |
| Stem Material: | carbide |
| Base Material: | titanium |
| Probe ball material: | ruby |
| Weight: | 0.7 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626113-0150-020 |
