TH M3 005 05 013
ITP P/N:
THM300505013
11
Suitable for Zeiss: 626113-0050-013
Suitable for Zeiss: 626113-0050-013
TH M3 005 05 013
ITP P/N:
THM300505013
€42.00*
Available, ready for shipment 1-3 days

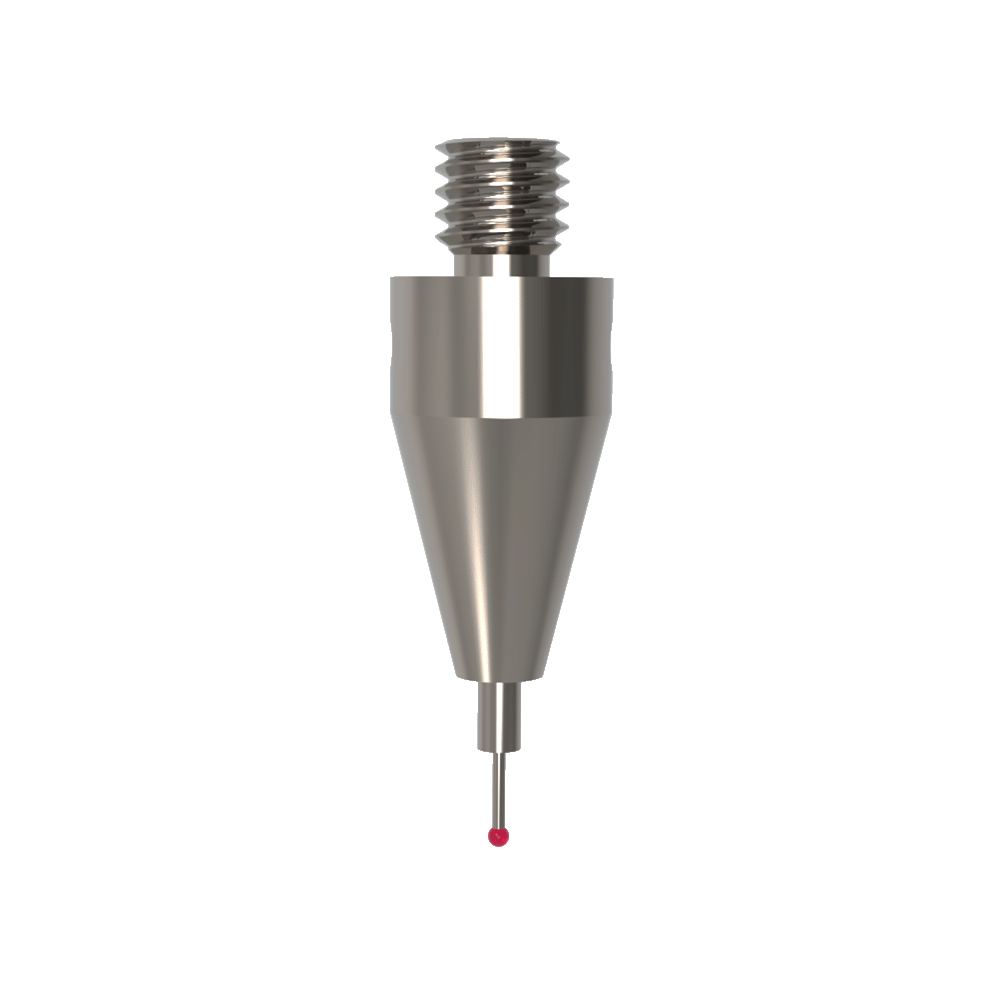

Straight Styli; base: titanium; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The extremely rigid tungsten carbide stem allows a wide range of dimensions. Stem can be single or multi-stepped.
High quality ruby balls from Ø0,3mm to Ø1,0mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

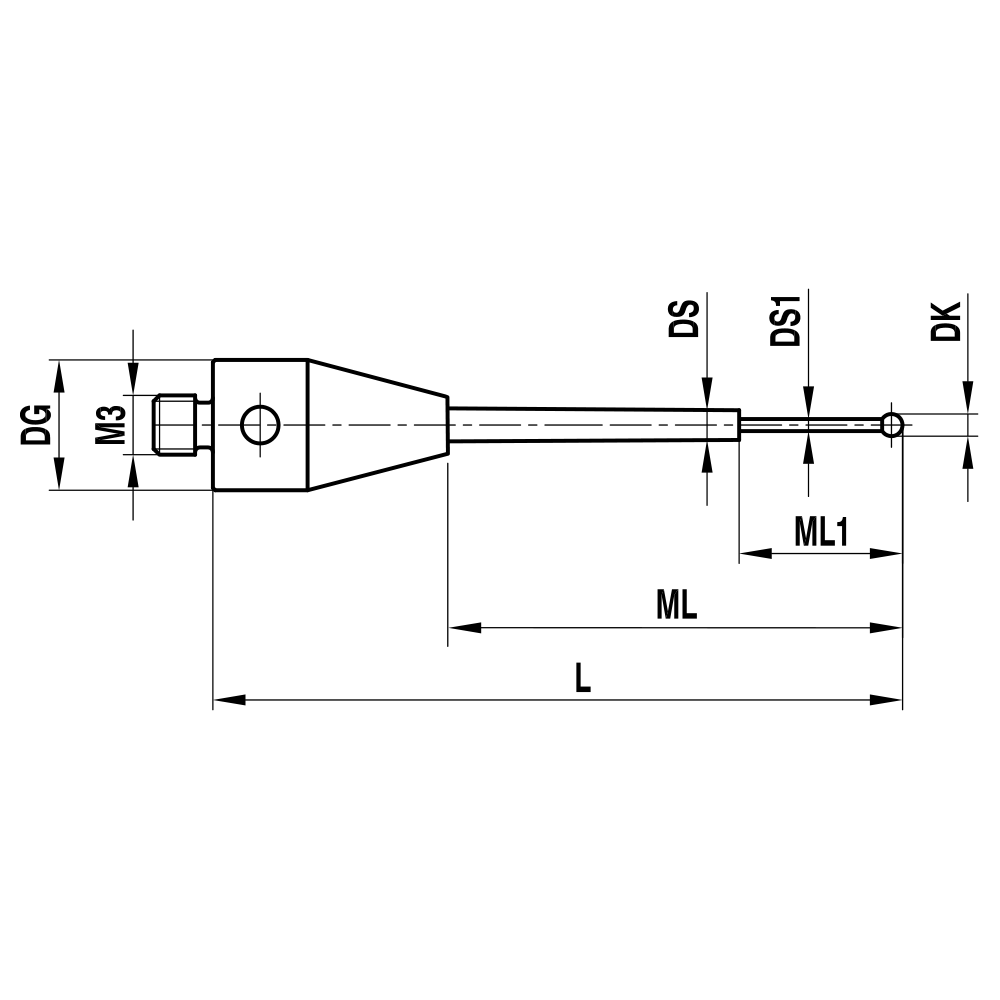

| Thread size: | M3 XXT |
|---|---|
| DK: | 0.5 |
| L: | 13.0 |
| DG: | 5.0 |
| ML: | 4.0 |
| ML (1): | 2.3 |
| DS: | 1.0 |
| DS (1): | 0.3 |
| Stem Material: | carbide |
| Base Material: | titanium |
| Probe ball material: | ruby |
| Weight: | 0.6 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626113-0050-013 |
