SI M5 000 10 017
ITP P/N:
SIM500010017
11
Suitable for Zeiss: 600341-0212-000
Suitable for Zeiss: 600341-0212-000
SI M5 000 10 017
ITP P/N:
SIM500010017
Accessories; base: stainless steel

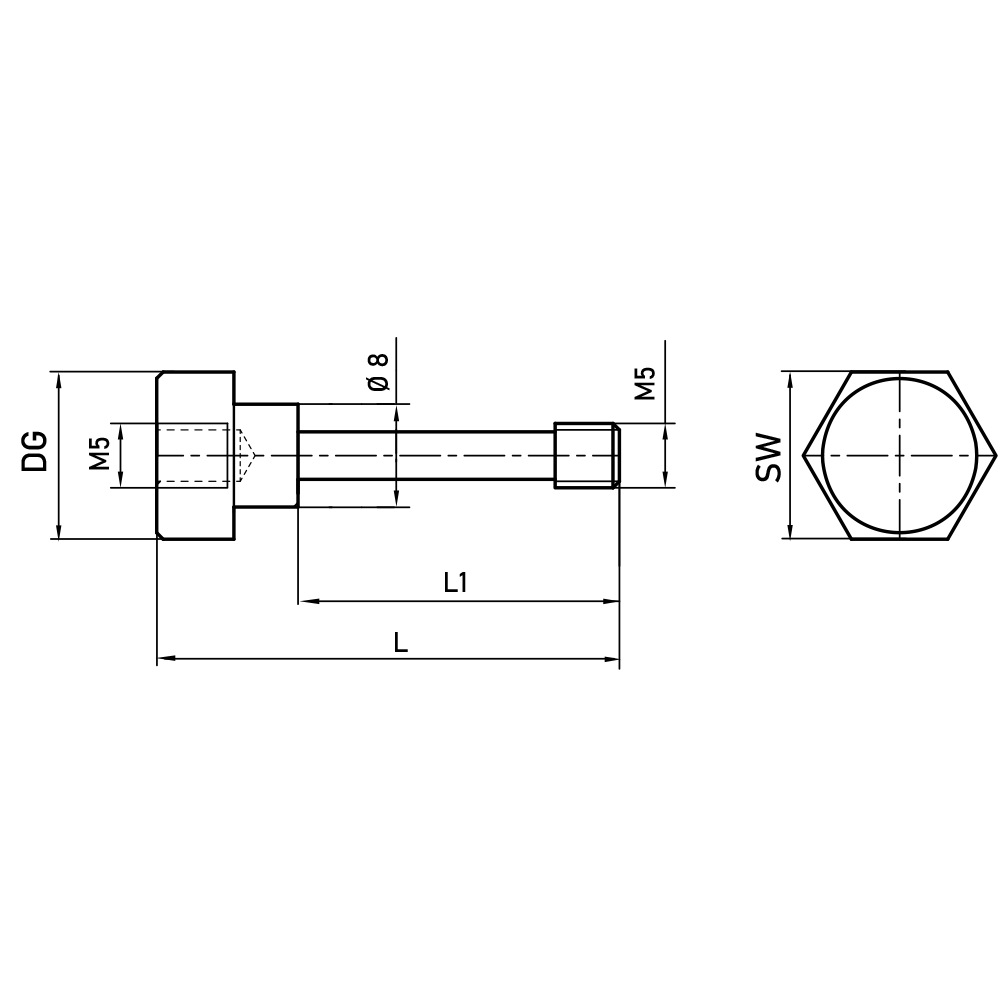

M5 screws are used in combination with spherical discs and M5 cubes to create application-specific configurations. The M5 thread at the front enables any stylus in the M5 range to be mounted.
| Thread size: | M5 |
|---|---|
| L: | 18.0 |
| L (1): | 9.0 |
| DG: | 13.0 |
| SW: | 13.0 |
| Base Material: | stainless steel |
| Weight: | 7.7 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-0212-000 |
| Renishaw-No.: | A-5555-0223 |
