SI M3 M30 05 008
ITP P/N:
SIM3M3005008
11
Suitable for Zeiss: 626103-6110-005, 620103-6110-005
Suitable for Zeiss: 626103-6110-005, 620103-6110-005
SI M3 M30 05 008
ITP P/N:
SIM3M3005008
€12.00*
Available in 14 days, delivery time 1-3 days

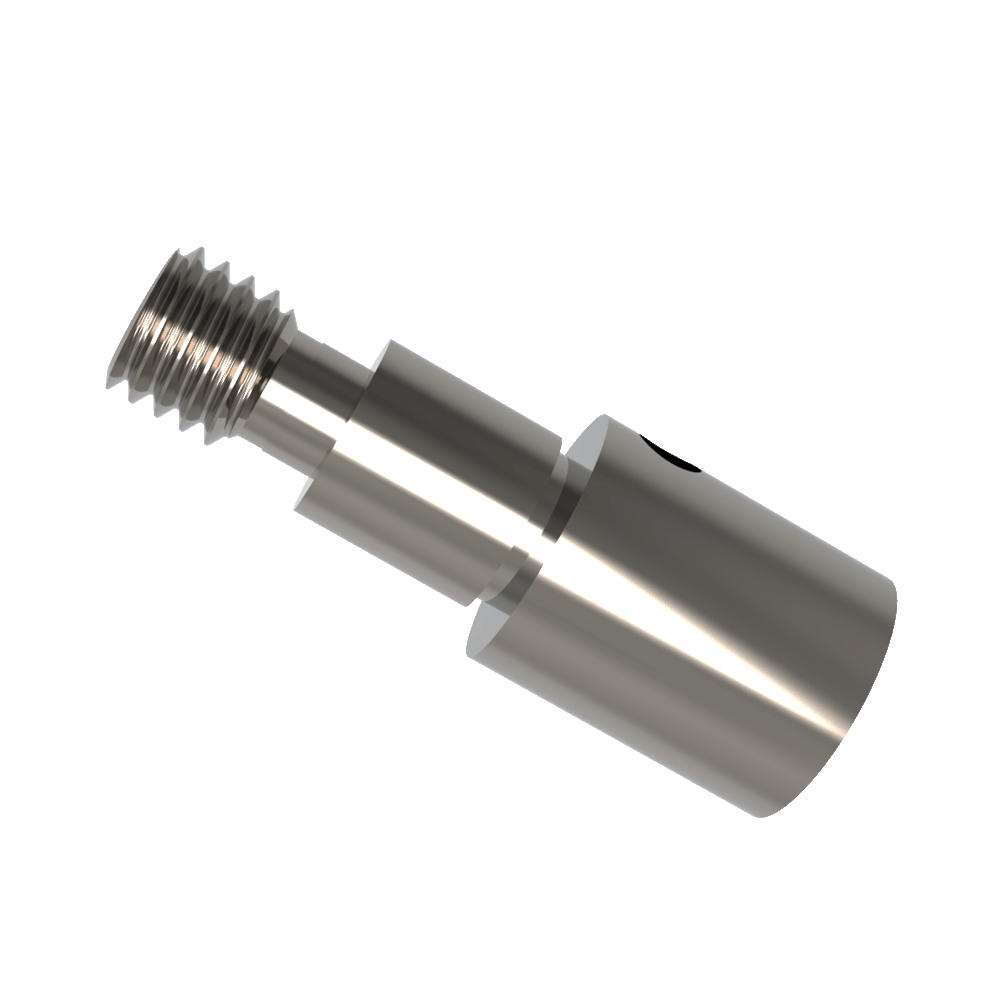

Accessories; base: titanium
The clamping screw is used to secure and centre stylus holders and star styli with a Ø3.5mm mounting hole from the M3 XXT range.
Possible combinations are e.g. WTM300005006 and SCM3S3005020/90°.

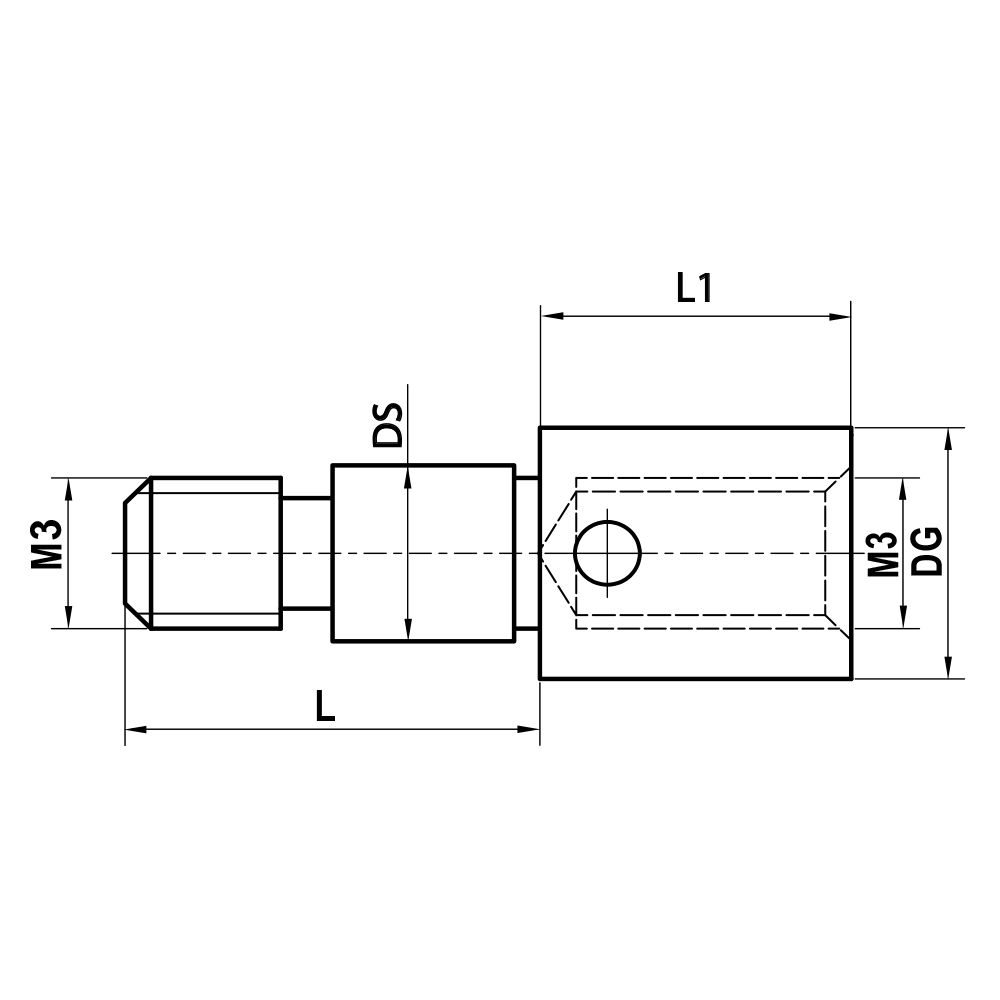

| Thread size: | M3 XXT |
|---|---|
| L: | 8.0 |
| L (1): | 6.0 |
| DG: | 5.0 |
| DS: | 3.5 |
| Base Material: | titanium |
| Weight: | 0.6 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626103-6110-005, 620103-6110-005 |
