SI M3 000 05 008
ITP P/N:
SIM300005008
11
Suitable for Zeiss: 626103-6110-004, 620103-6110-004
Suitable for Zeiss: 626103-6110-004, 620103-6110-004
SI M3 000 05 008
ITP P/N:
SIM300005008
€12.00*
Available, ready for shipment 1-3 days

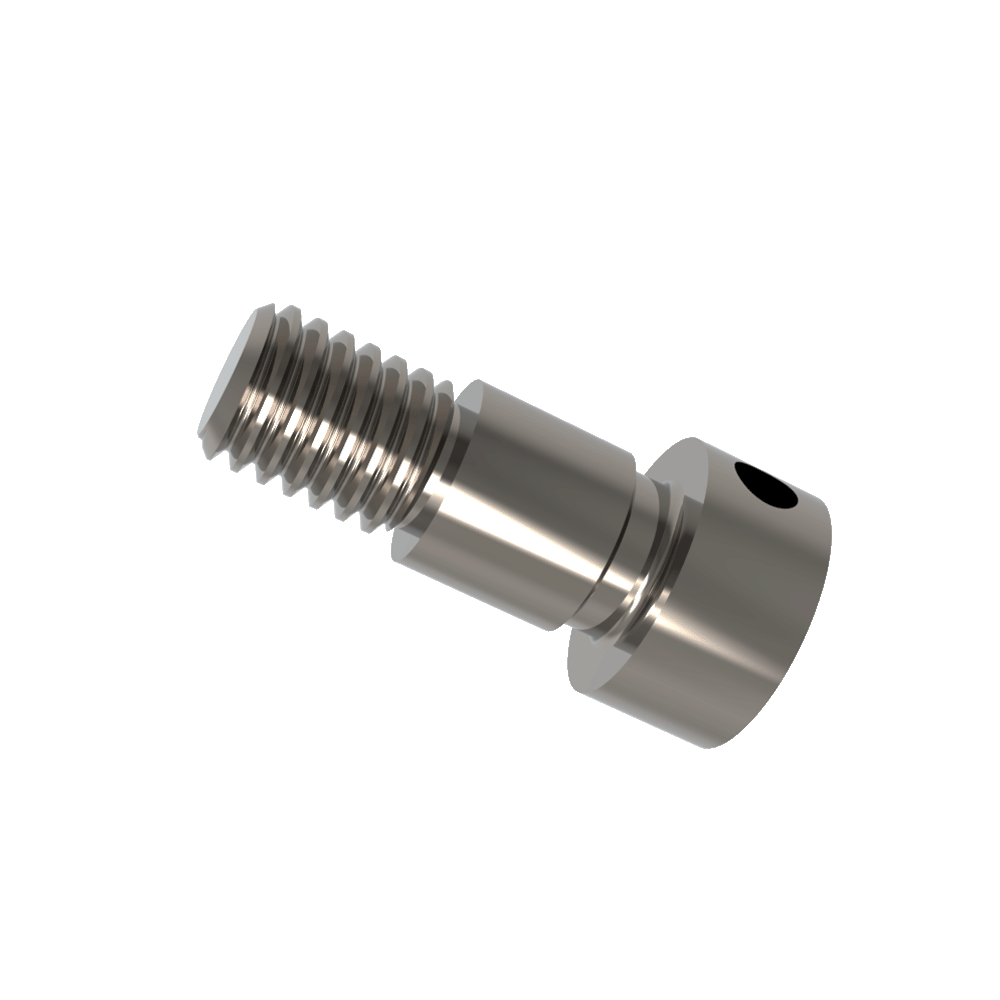

Accessories; base: titanium
The clamping screw is used to secure and centre stylus holders and star styli with a Ø3.5mm mounting hole from the M3 XXT range.
Possible combinations are e.g. WTM300005006 and SCM3S3005020/90°.

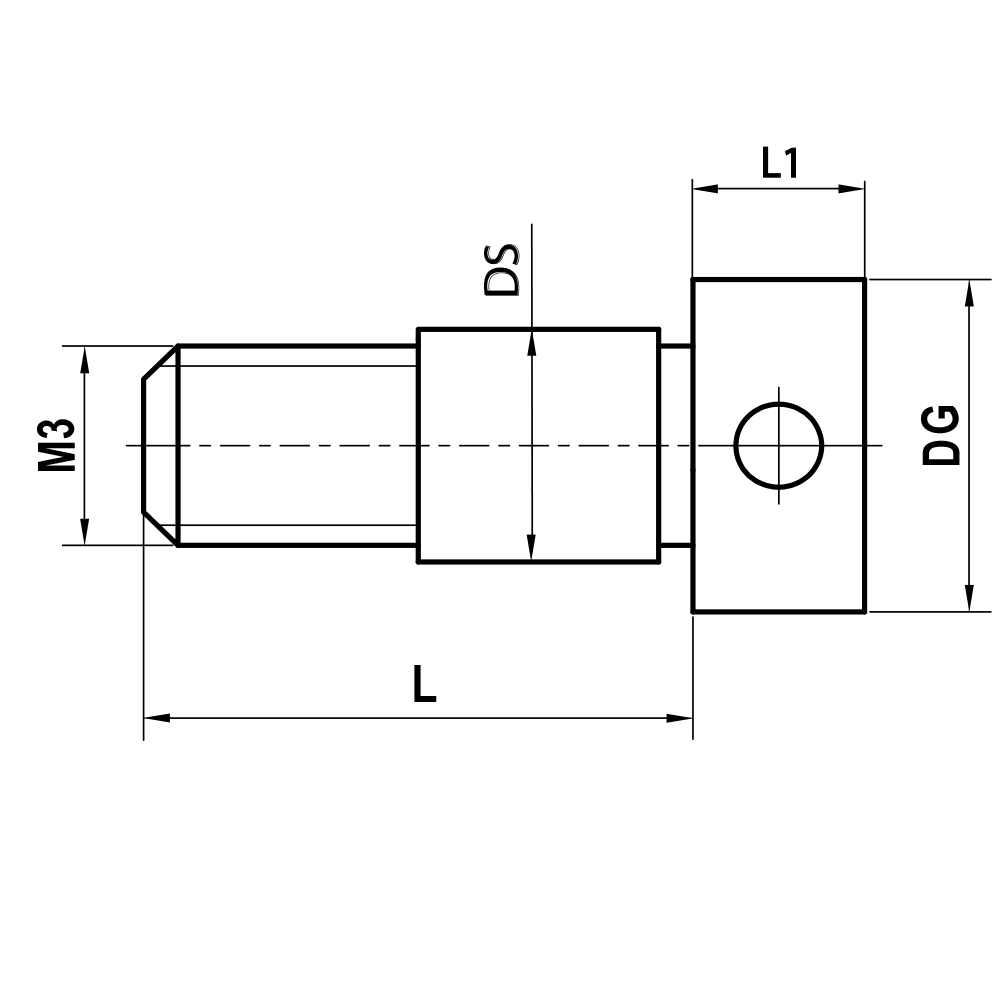

| Thread size: | M3 XXT |
|---|---|
| L: | 8.0 |
| L (1): | 2.5 |
| DG: | 5.0 |
| DS: | 3.5 |
| Base Material: | titanium |
| Weight: | 0.4 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626103-6110-004, 620103-6110-004 |
