KT M5 005 04 035
ITP P/N:
KTM500504035
Straight Styli; stem: carbide; ball: ruby
Straight stylus with no thread, which allows for a high degree of flexibility.
The tungsten carbide stem can be single or multi-stepped. The styli can be used with the appropriate clamp holder.
This version is available with ruby balls Ø0,2mm to 5,0mm. Other sizes can be requested via the configurator or by e-mail.

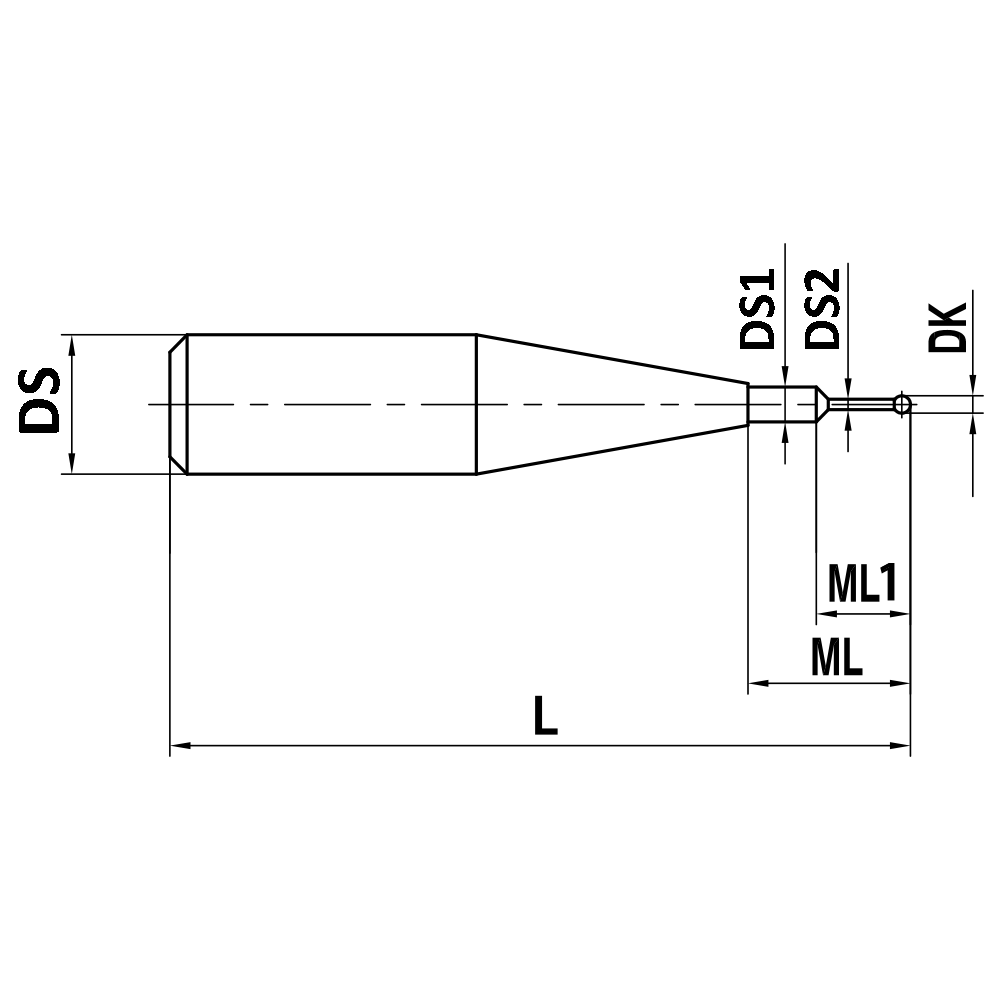

| Thread size: | without |
|---|---|
| L: | 35.25 |
| DK: | 0.5 |
| DS: | 4.0 |
| ML: | 4.75 |
| DS (1): | 1,0 |
| DS (2): | 0.3 |
| ML (1): | 2.75 |
| Stem Material: | carbide |
| Probe ball material: | ruby |
| Weight: | 4.7 |
| Name | Filename |
|---|---|
| CAD data | KTM500504035.stp |
