DT M3 000 05 010
ITP P/N:
DTM300005010
11
Suitable for Zeiss: 626103-6180-001
Suitable for Zeiss: 626103-6180-001
DT M3 000 05 010
ITP P/N:
DTM300005010
€106.00*
Available, ready for shipment 1-3 days

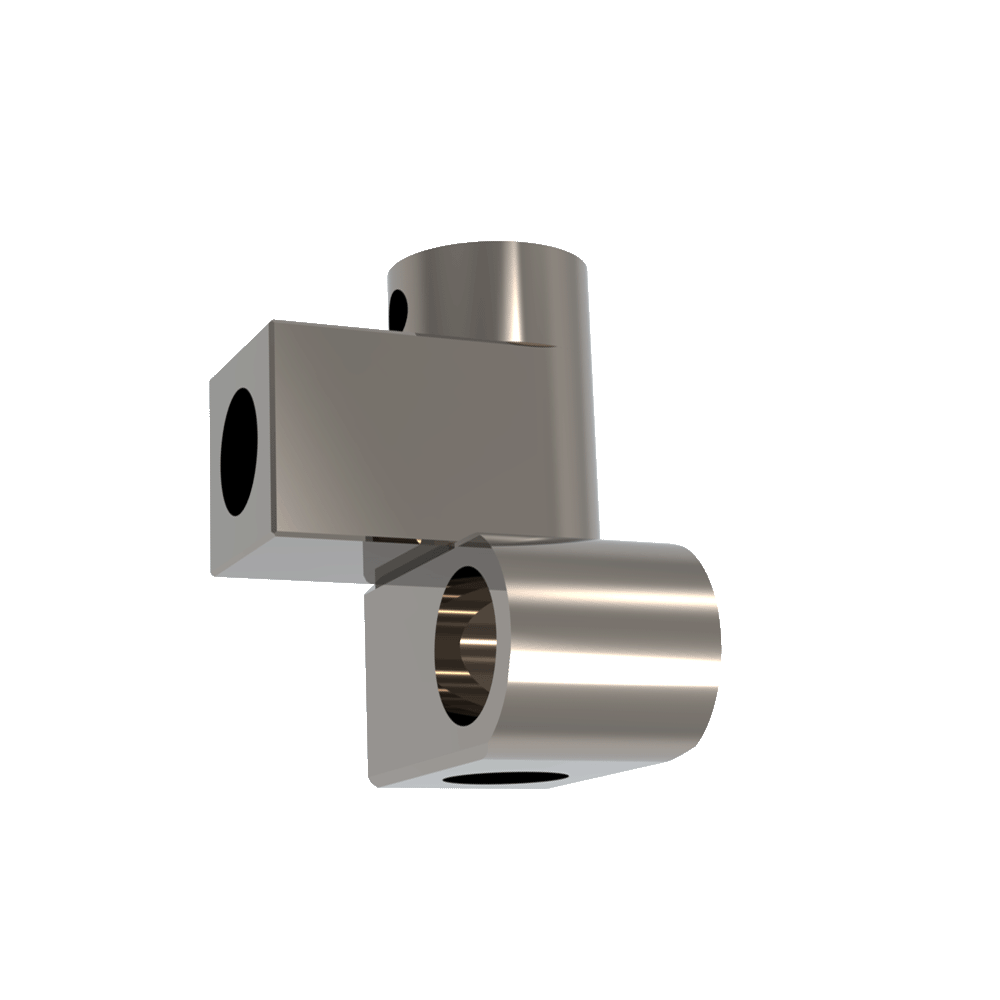

Adapters / Holders; base: titanium
The knuckle can be used to achieve any angular position between 90° and 180°. At the same time, the stylus can be rotated relative to the machine or workpiece coordinate system. This element is very practical in conjunction with rigid measuring systems.

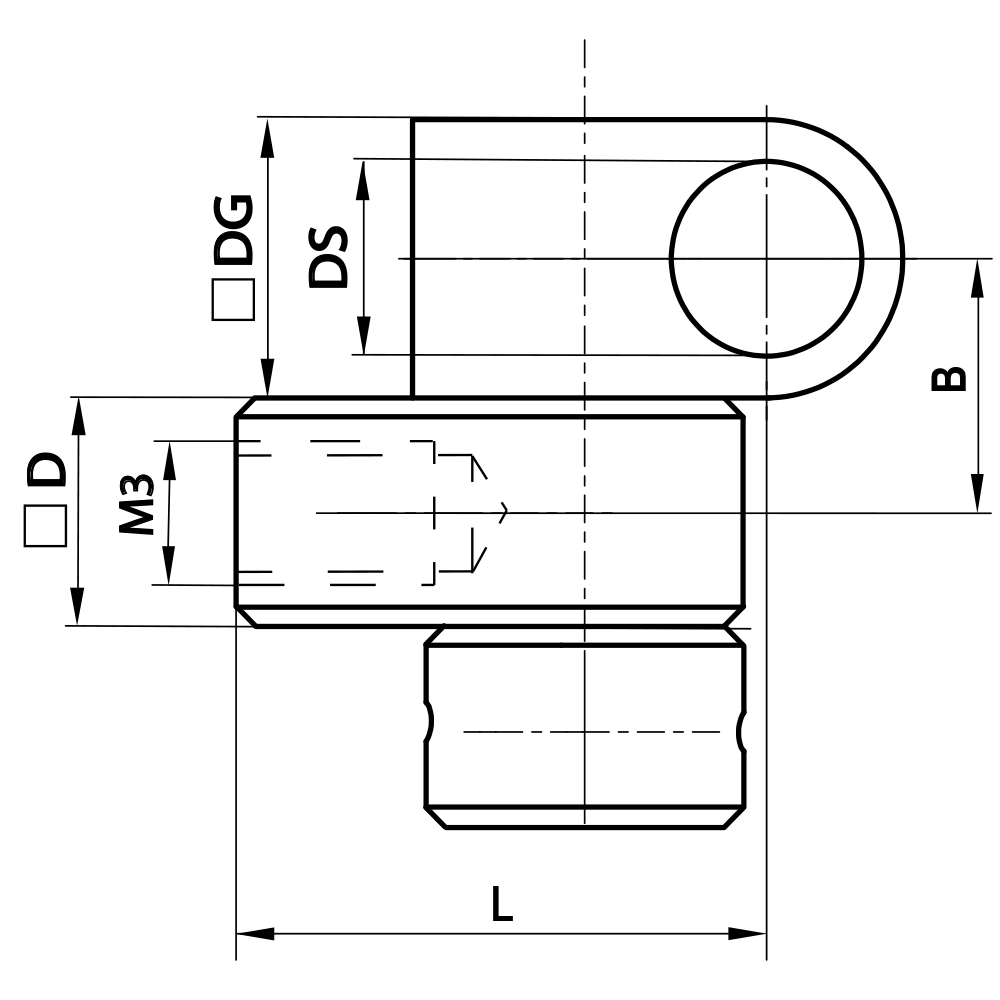

| Thread size: | M3 XXT |
|---|---|
| L: | 10.2 |
| DG: | 5.0 |
| DS: | 3.5 |
| B: | 5.0 |
| D: | 5.0 |
| Base Material: | titanium |
| Weight: | 1.6 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626103-6180-001 |
