DG M5 000 11 051
ITP P/N:
DGM500011051
11
DG M5 000 11 051
ITP P/N:
DGM500011051
€155.00*
Available, ready for shipment 1-3 days

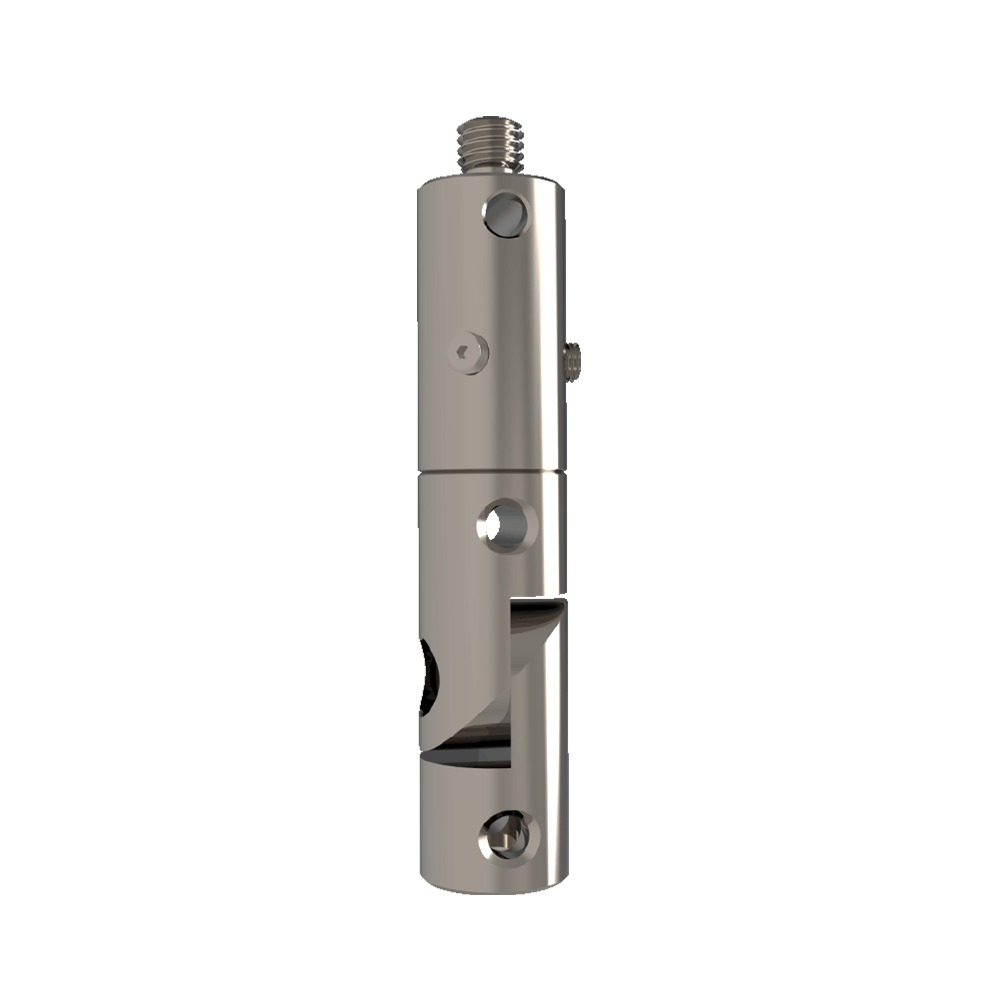

Adaptors / Holders; base: titanium

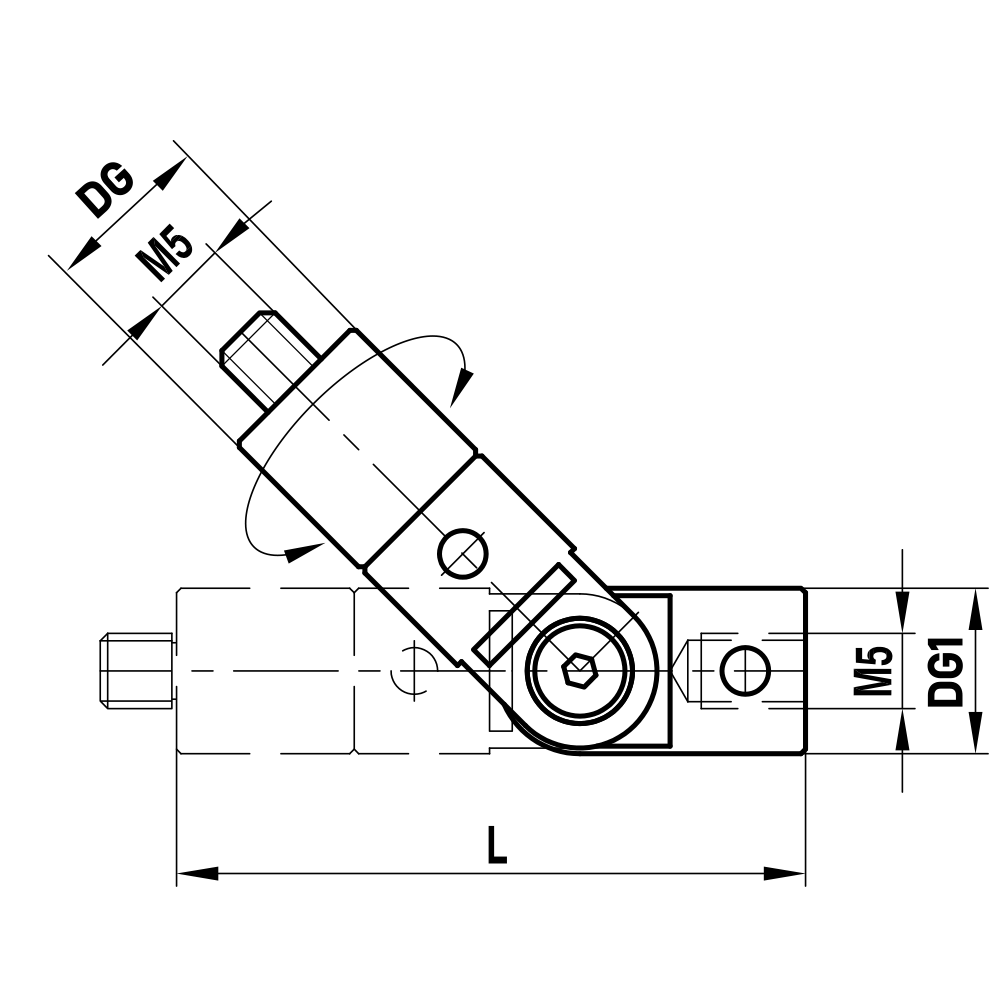

The swivel joint can be used to achieve any angular position between 90° and 180°. At the same time, it is possible to rotate the styli in relation to the machine or workpiece coordinate system. This element is very useful in combination with rigid measuring systems.
| Thread size: | M5 |
|---|---|
| L: | 51.0 |
| DG: | 11.0 |
| DG (1): | 11.0 |
| Base Material: | titanium |
| Weight: | 23.2 |
| Compatible with: | Hexagon |
| Hexagon-No.: | M00-1126-002-000 |
