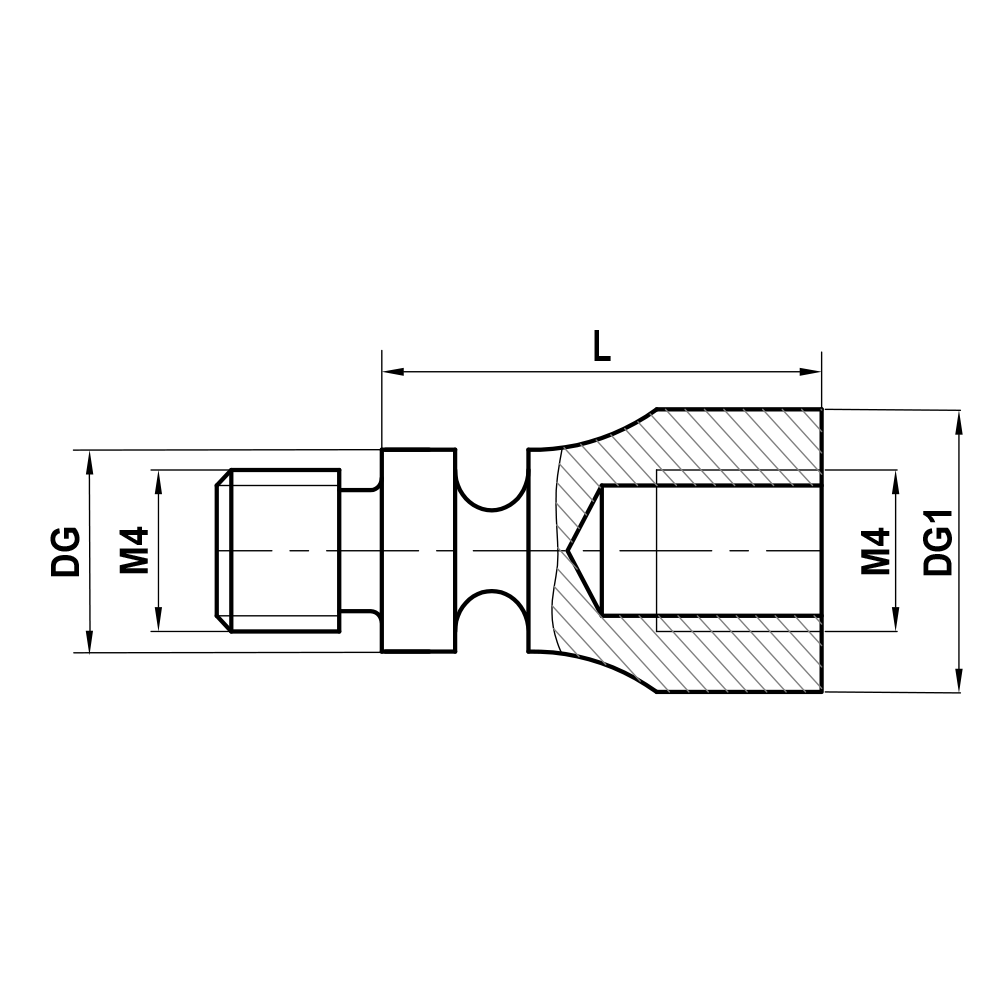

BI M4 000 07 012
ITP P/N:
BIM400007012
11
BI M4 000 07 012
ITP P/N:
BIM400007012
Accessories; base: stainless steel
Breaking Point Pieces are designed to break when the allowable override forces are exceeded, preventing damage to the stylus. The main application is with spindle styli in combination with a variety of styli from the M4 range.
| Thread size: | M4 |
|---|---|
| L: | 12.0 |
| DG: | 7.0 |
| DG (1): | 7.0 |
| Base Material: | stainless steel |
| Weight: | 2.6 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5004-7621 |
