ZR M2 010 03 015
Termékszám:
ZRM201003015
11
Suitable for Zeiss: 000000-0438-183
Suitable for Zeiss: 000000-0438-183
ZR M2 010 03 015
Termékszám:
ZRM201003015
Cylinder Styli; base: stainless steel; stem: ziconium oxide; ball: zirconium oxide
Styli with cylindrical zirconia tip and stainless steel holder. The measuring cylinder has a very high degree of shape accuracy and is provided with a spherical end to allow axial probing.

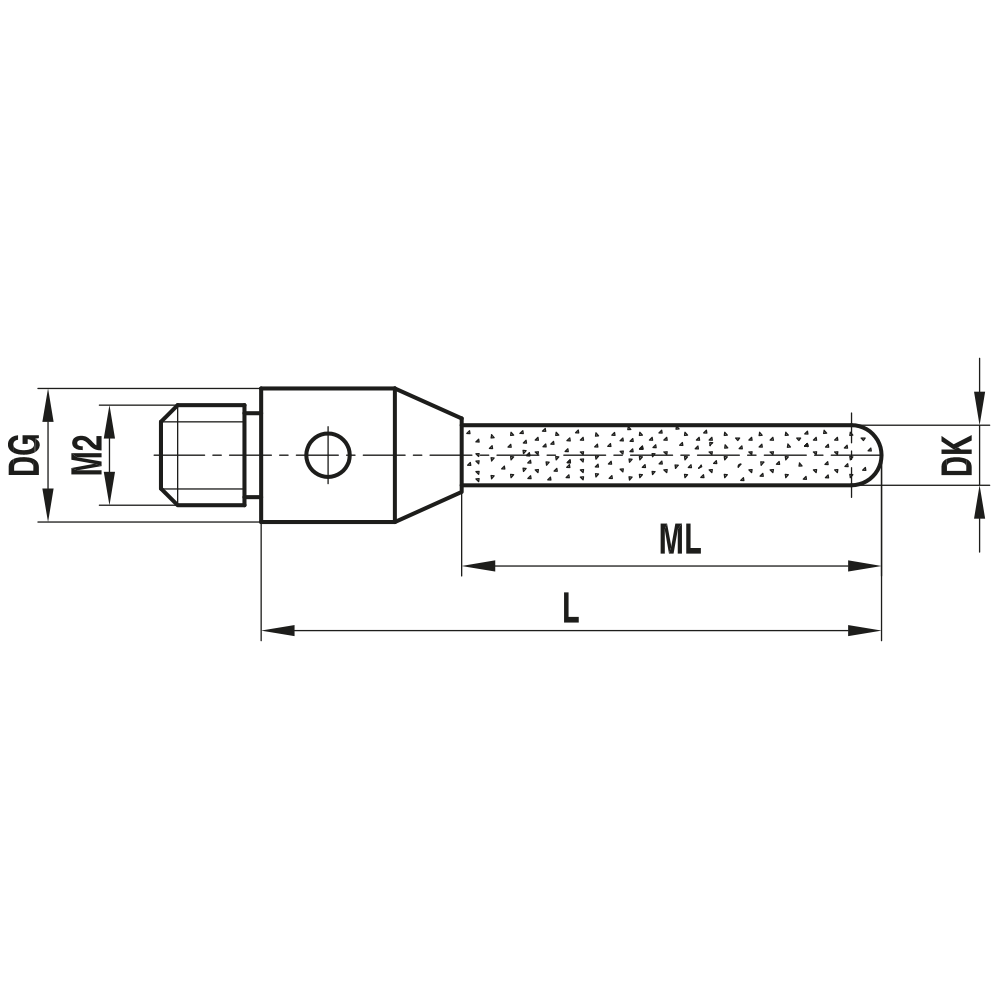

| Thread size: | M2 |
|---|---|
| DK: | 1.0 |
| L: | 15.0 |
| DG: | 3.0 |
| ML: | 8.0 |
| Base Material: | stainless steel |
| Probe ball material: | zirconium oxide |
| Súly: | 0.3 |
| Compatible with: | Hexagon, Mitutoyo, Renishaw, Zeiss |
| Zeiss No.: | 000000-0438-183 |
| Renishaw-No.: | A-5003-2002 |
| Hexagon-No.: | 03969445 |
| itp_product_attributes_mitutoyo_no: | K651034 |
