ZH M3 015 04 011
Termékszám:
ZHM301504011
11
Suitable for Zeiss: 602030-8097-000
Suitable for Zeiss: 602030-8097-000
ZH M3 015 04 011
Termékszám:
ZHM301504011

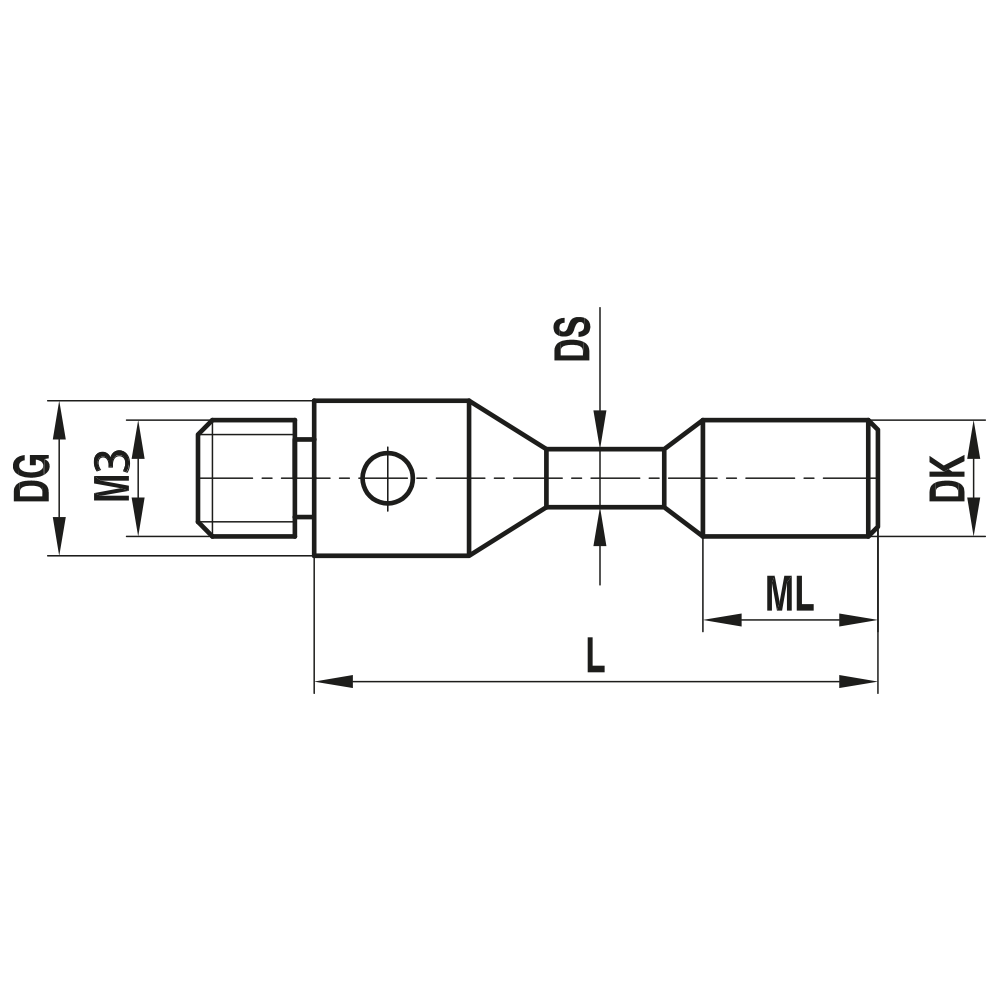

Cylinder Styli; base: stainless steel; stem: carbide; ball: carbide
Styli with cylindrical tungsten carbide stylus and stainless steel holder. The stem is stepped to prevent accidental contact.
| Thread size: | M3 |
|---|---|
| DK: | 1.5 |
| L: | 11.0 |
| DG: | 4.0 |
| ML: | 1.5 |
| DS: | 1.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | carbide |
| Súly: | 0.7 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-8097-000 |
| Renishaw-No.: | A-5004-0254 |
