ZH M2 020 03 016
Termékszám:
ZHM202003016
11
ZH M2 020 03 016
Termékszám:
ZHM202003016
Cylinder Styli; base: stainless steel; stem: carbide; ball: carbide
These models are styli with a cylindrical hard metal measuring element and a stainless steel holder. The measuring cylinder has a very high degree of shape accuracy and is designed with a spherical end to allow axial probing.

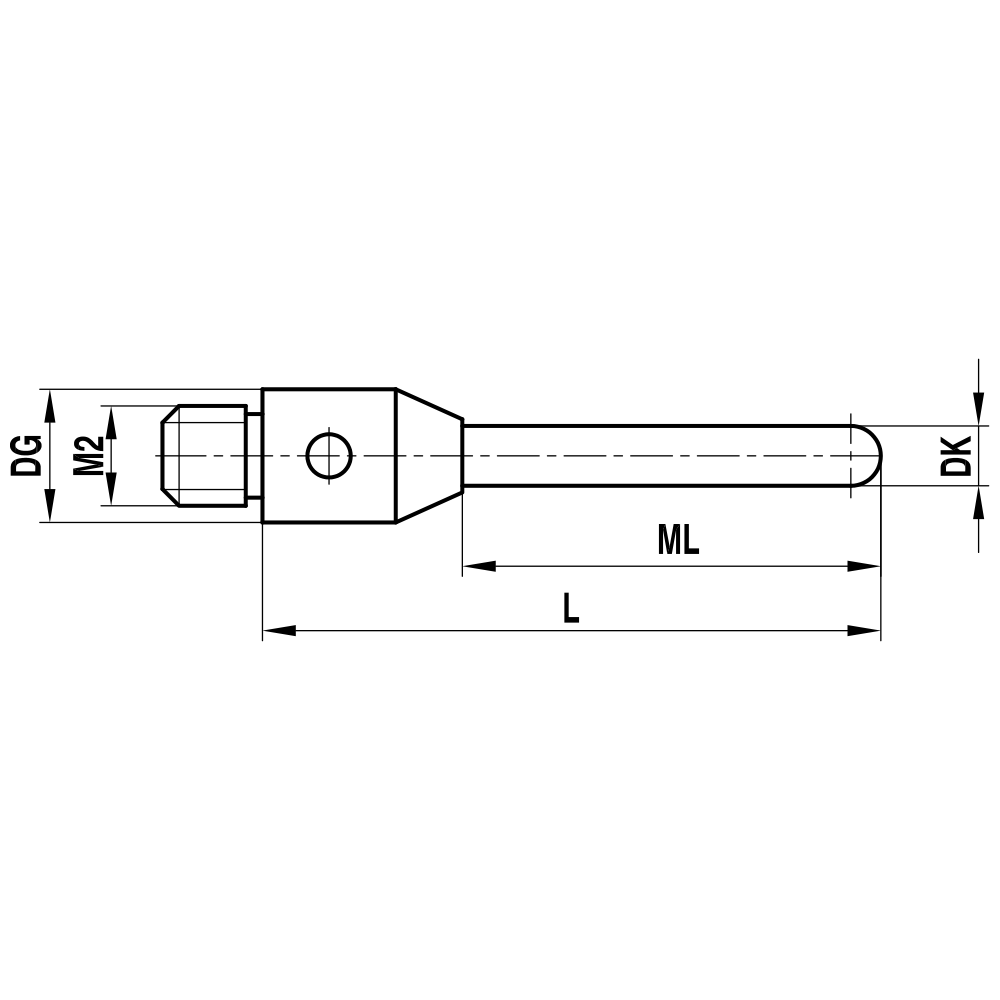

| Thread size: | M2 |
|---|---|
| DK: | 2.0 |
| L: | 16.0 |
| DG: | 3.0 |
| ML: | 8.5 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | carbide |
| Súly: | 0.8 |
| Compatible with: | Hexagon, Renishaw |
| Renishaw-No.: | A-5003-1228 |
| Hexagon-No.: | 03969279 |
