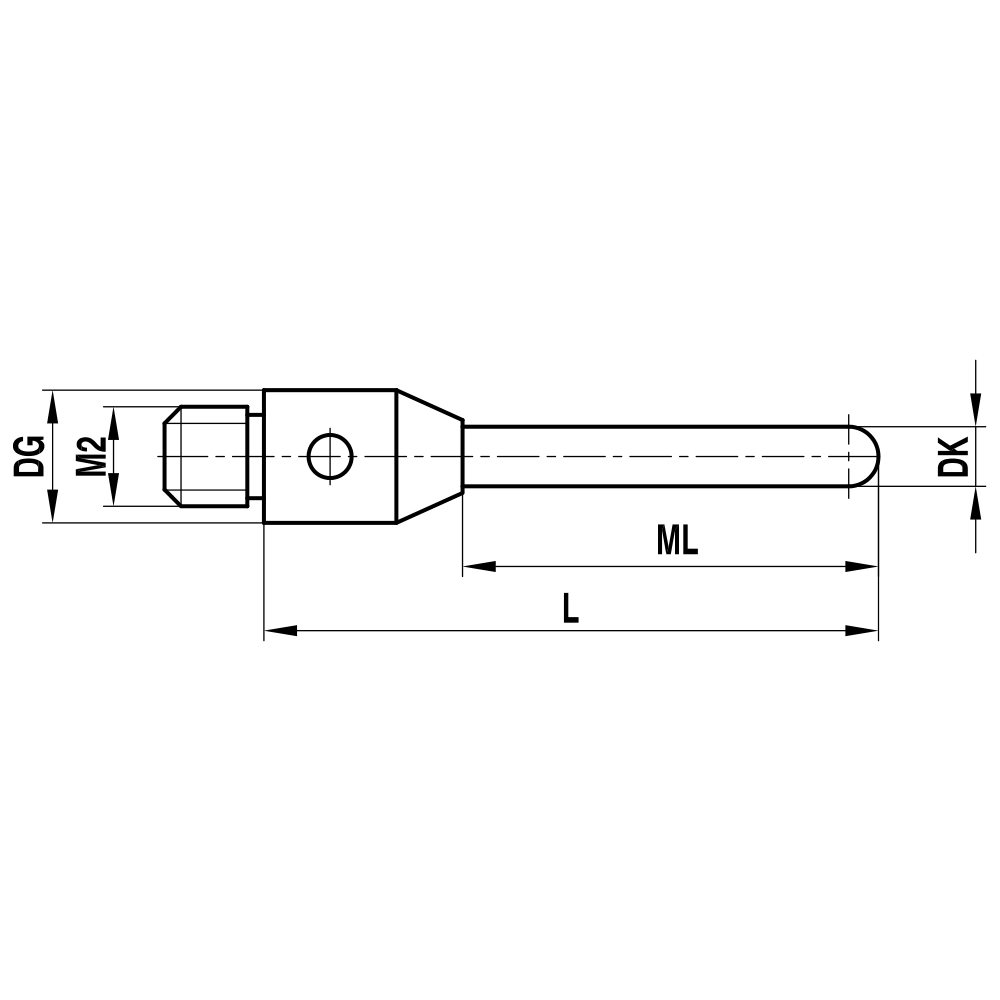

Cylinder Styli; base: stainless steel; stem: carbide; ball: carbide
These models are styli with a cylindrical hard metal measuring element and a stainless steel holder. The measuring cylinder has a very high degree of shape accuracy and is designed with a spherical end to allow axial probing.
| Thread size: | M2 |
|---|---|
| DK: | 1.5 |
| L: | 15.8 |
| DG: | 3.0 |
| ML: | 8.3 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | carbide |
| Súly: | 0.6 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5003-1219 |
