VC M5 TZ0 20 200
Termékszám:
VCM5TZ020200
11
Suitable for Zeiss: 626107-2200-100, 000000-1025-176
Suitable for Zeiss: 626107-2200-100, 000000-1025-176
VC M5 TZ0 20 200
Termékszám:
VCM5TZ020200
150,00 EUR*
Elérhető 14 napon belül, szállítási idő 1-3 days

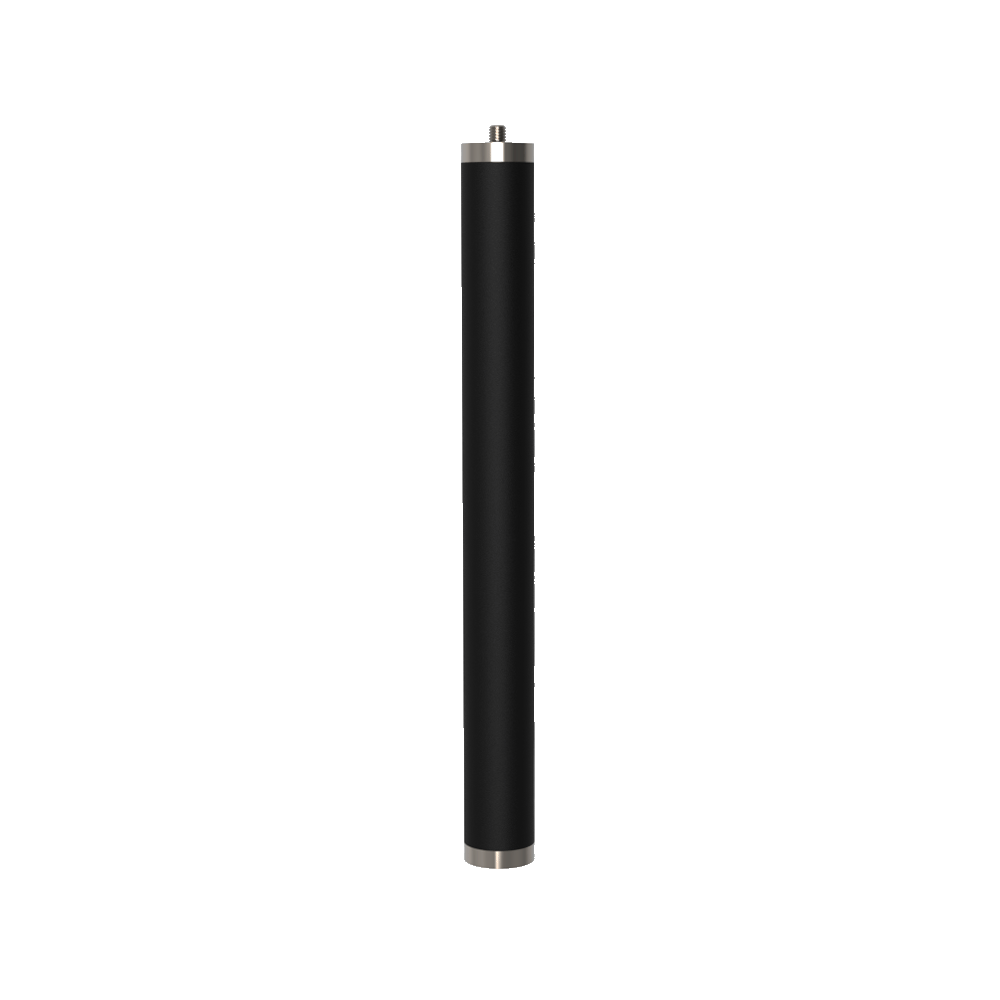

Extensions; base: titanium; stem: carbon fiber
Stylus extension with carbon fibre tube stem and titanium end pieces. Carbon fibre combines the best properties that are most important in metrology. These include extreme bending and torsional stiffness, very low weight and a very low negative coefficient of expansion.

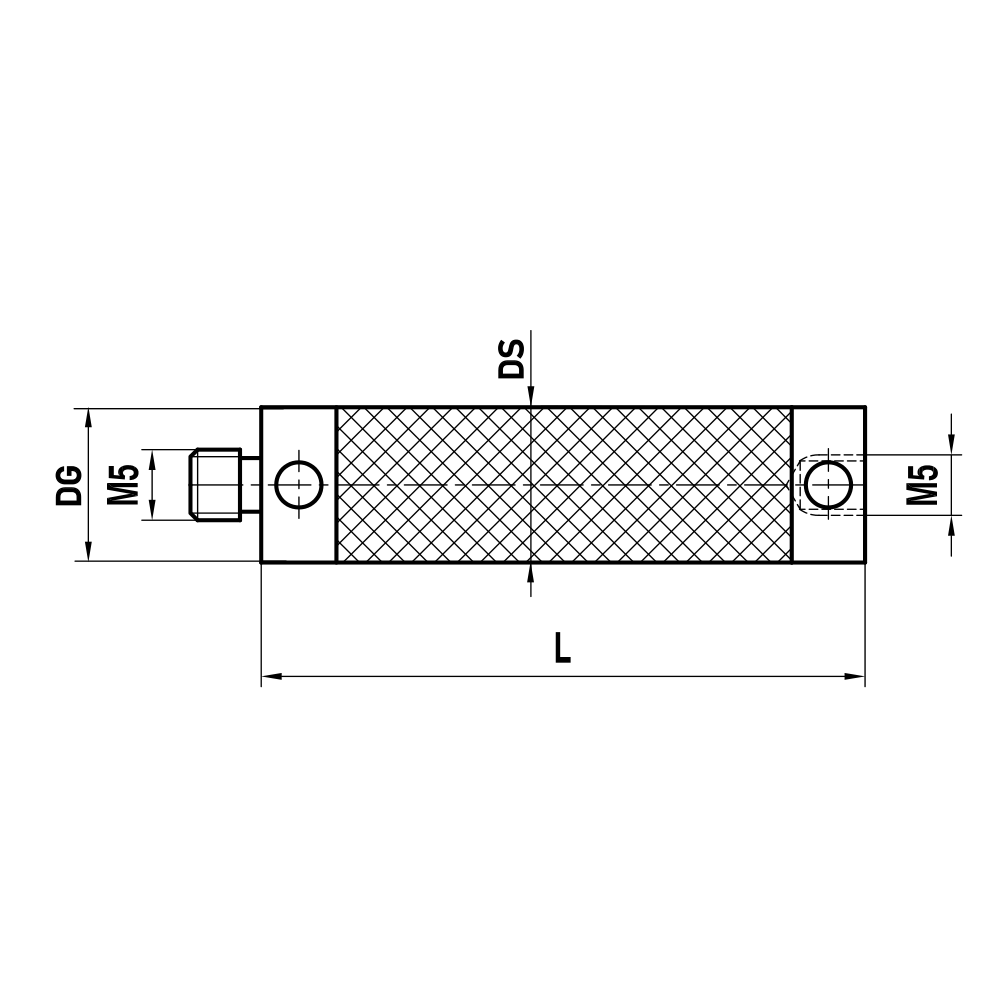

| Thread size: | M5 |
|---|---|
| L: | 200.0 |
| DG: | 20.0 |
| DS: | 20.0 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Súly: | 53.9 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 626107-2200-100, 000000-1025-176 |
| Renishaw-No.: | A-5003-5001, A-5555-0663 |
