TV M5 TZ2 20 050
Termékszám:
TVM5TZ220050
11
Suitable for Zeiss: 626107-2050-110
Suitable for Zeiss: 626107-2050-110
TV M5 TZ2 20 050
Termékszám:
TVM5TZ220050
184,00 EUR*
Elérhető 14 napon belül, szállítási idő 1-3 days

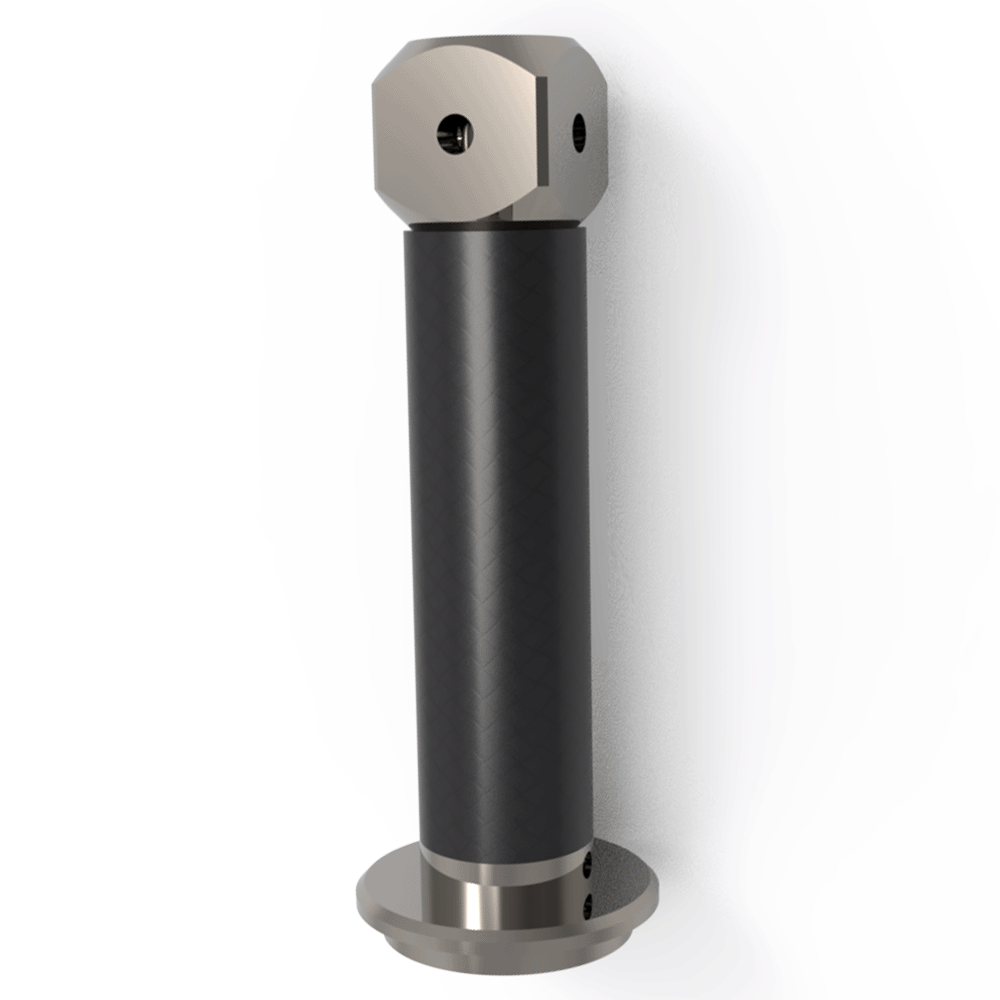

Extensions; base: titanium; stem: carbon fiber
Adaptor plate extension with carbon fibre tube stem and titanium end pieces. Carbon fibre combines the best properties that are most important in metrology. These include extreme bending and torsional stiffness, very low weight and a very low negative coefficient of expansion. This component is used to extend the measuring length of a measuring table such as the TPM5MESSO001.

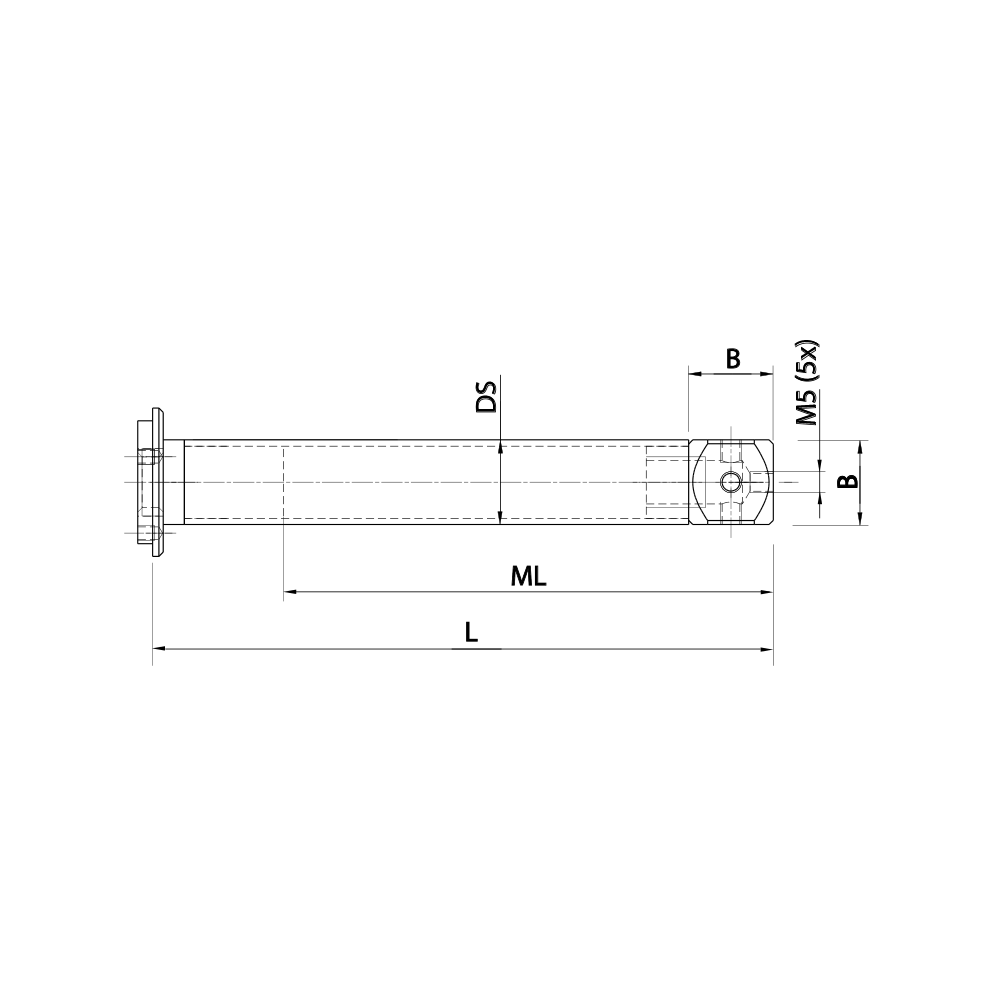

| Thread size: | M5 |
|---|---|
| L: | 96.5 |
| ML: | 79.0 |
| DS: | 20.0 |
| B: | 20.0 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Súly: | 73 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626107-2050-110 |
