TP M3 MES SO TL2
Termékszám:
TPM3MESSOTL2
11
Suitable for Zeiss: 620161-8264-000, 620161-8065-000
Suitable for Zeiss: 620161-8264-000, 620161-8065-000
TP M3 MES SO TL2
Termékszám:
TPM3MESSOTL2
Adaptor plates; base: aluminium; stem: carbon fiber

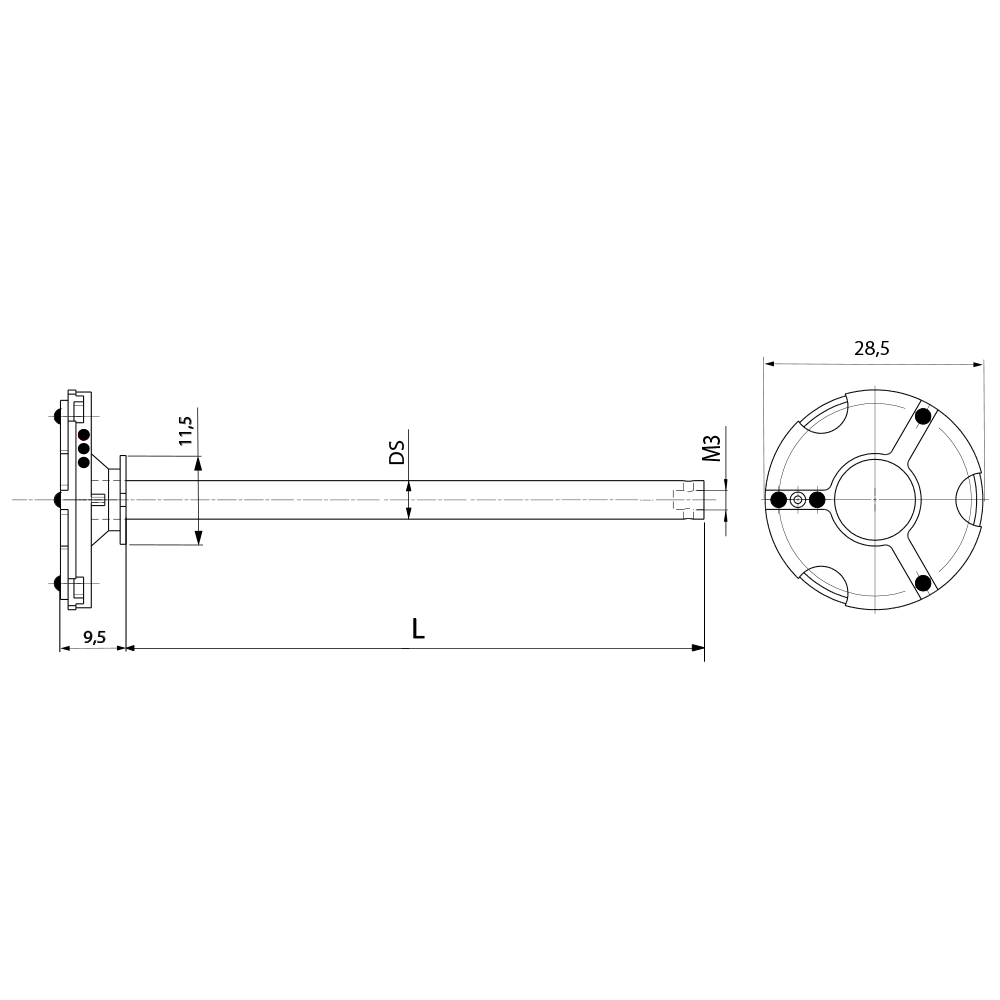

The TL2 M3 XXT adaptor plate is used to connect the stylus to the probing system. It is fitted with an ID chip to identify the installed stylus system.The plate is fitted with a 75.0mm carbon fibre extension and can be combined with any M3 XXT threaded item.
| Thread size: | M3 XXT |
|---|---|
| L: | 75.0 |
| DS: | 5.0 |
| Stem Material: | carbon fiber |
| Base Material: | aluminium |
| Súly: | 5.5 |
| Compatible with: | Zeiss |
| Zeiss No.: | 620161-8264-000, 620161-8065-000 |
