TP M3 MES SO TL1S
Termékszám:
TPM3MESSOTL1S
11
Suitable for Zeiss: 626103-8431-055, 626103-8031-055
Suitable for Zeiss: 626103-8431-055, 626103-8031-055
TP M3 MES SO TL1S
Termékszám:
TPM3MESSOTL1S
Adaptor plates; base: aluminium; stem: carbon fiber

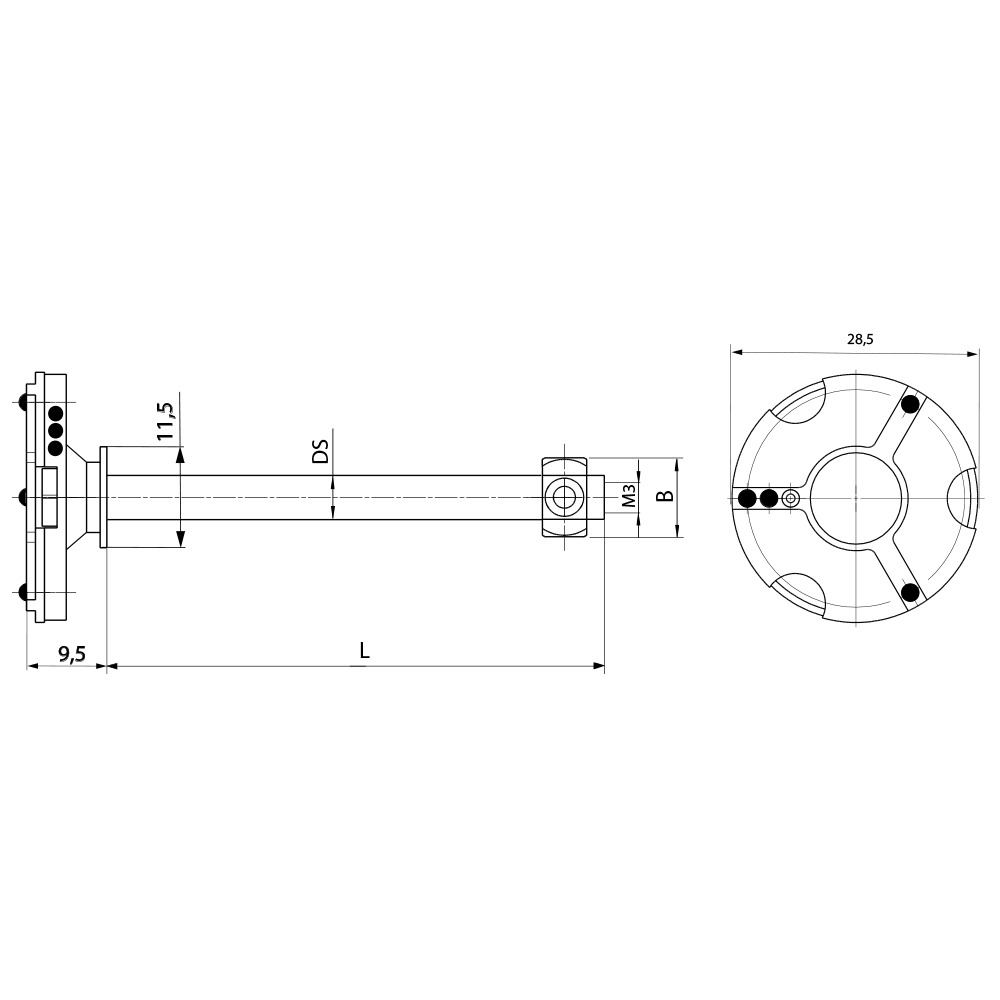

The TL1S (star) M3 XXT adaptor plate is used to connect the stylus to the probing system. It is fitted with an ID chip to identify the installed stylus system. The plate is equipped with a carbon fibre extension and a 5-way cube and can be combined with any item from the M3 XXT thread range.
| Thread size: | M3 XXT |
|---|---|
| L: | 55.0 |
| DS: | 5.0 |
| B: | 9.0 |
| Stem Material: | carbon fiber |
| Base Material: | aluminium |
| Súly: | 5.9 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626103-8431-055, 626103-8031-055 |
