Straight Styli; base: stainless steel; stem: carbide; ball: carbide
Straight stylus with M6 thread, specially designed for hand-held measuring systems.
The tungsten carbide stem is extremely rigid, allowing a wide range of dimensions.
Pressure and impact resistant carbide balls complete the durable design.
Other dimensions can be requested via the configurator or by e-mail.

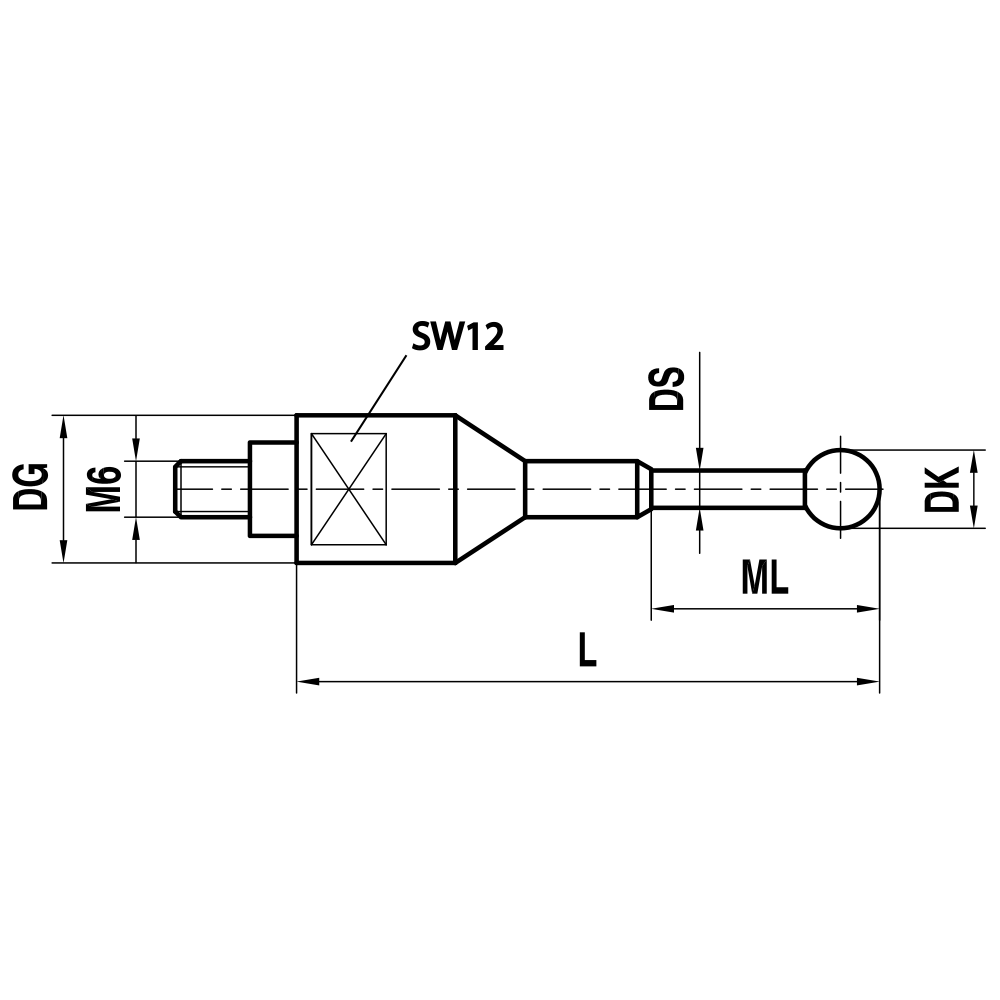

| Thread size: | M6 |
|---|---|
| DK: | 25.4 |
| L: | 69.0 |
| DG: | 16.0 |
| ML: | 31.0 |
| DS: | 3.5 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | carbide |
| Súly: | 168 |
| Compatible with: | Faro |
