TH M2 003 03 010
Termékszám:
THM200303010
11
Suitable for Zeiss: 623062-3131-000
Suitable for Zeiss: 623062-3131-000
TH M2 003 03 010
Termékszám:
THM200303010
Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
Due to its extreme rigidity, the carbide stem enables a wide range of dimensions.The stem can be single or multi-stepped. Ruby balls of the highest quality from Ø0,2mm to Ø1,0mm are used for these styli.
Further sizes can be requested via the configurator or by e-mail.

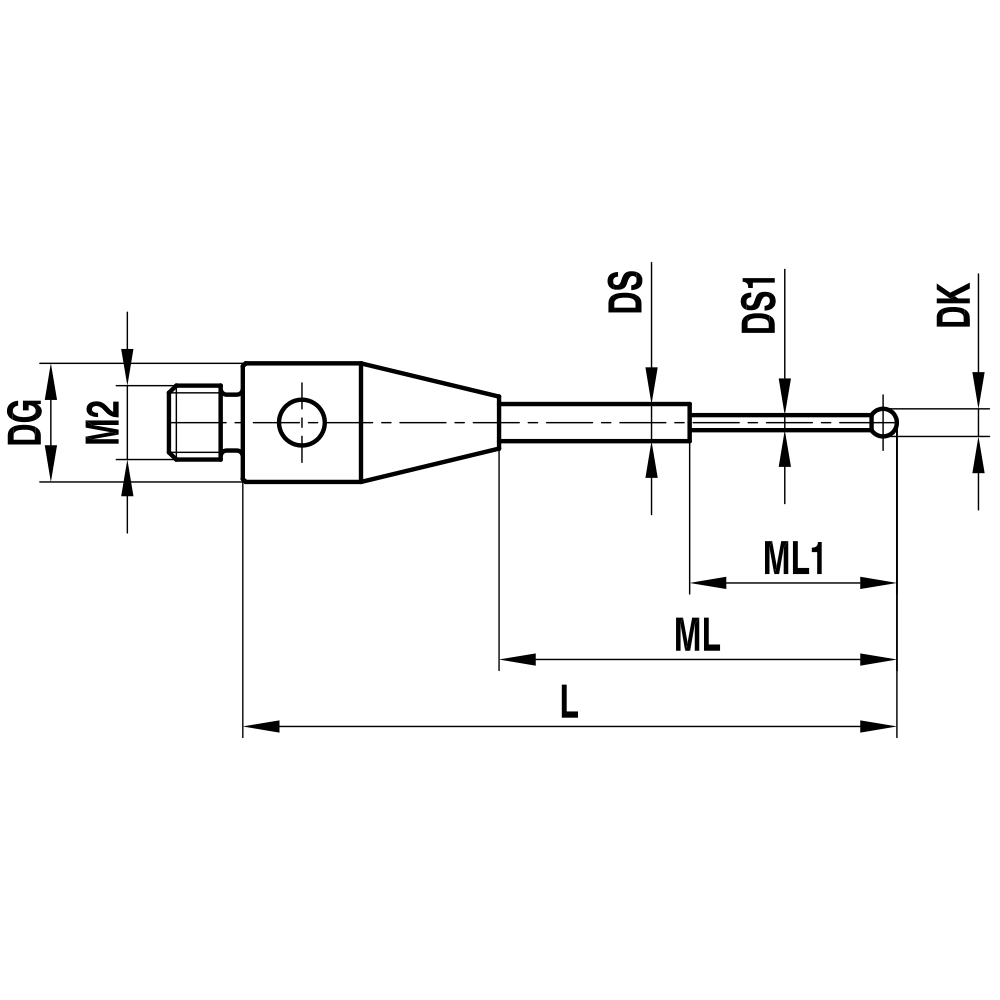

| Thread size: | M2 |
|---|---|
| DK: | 0.3 |
| L: | 10.15 |
| DG: | 3.0 |
| ML: | 4.15 |
| ML (1): | 2.15 |
| DS: | 0.7 |
| DS (1): | 0.2 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 0.3 |
| Compatible with: | Hexagon, Mitutoyo, Renishaw, Zeiss |
| Zeiss No.: | 623062-3131-000 |
| Renishaw-No.: | A-5000-7800 |
| Hexagon-No.: | 03969268 |
| itp_product_attributes_mitutoyo_no: | K651233 |
