KK M5 010 10 017
Termékszám:
KKM501010017
11
Suitable for Zeiss: 600341-8183-000, 600341-8163-000
Suitable for Zeiss: 600341-8183-000, 600341-8163-000
KK M5 010 10 017
Termékszám:
KKM501010017
Straight Styli; stem: carbide; ball: ruby
Straight stylus for use with KIM502211040.
The ball bearing clamp mechanism allows any angle to be set in an instant.
Ruby balls are available as a touch element.

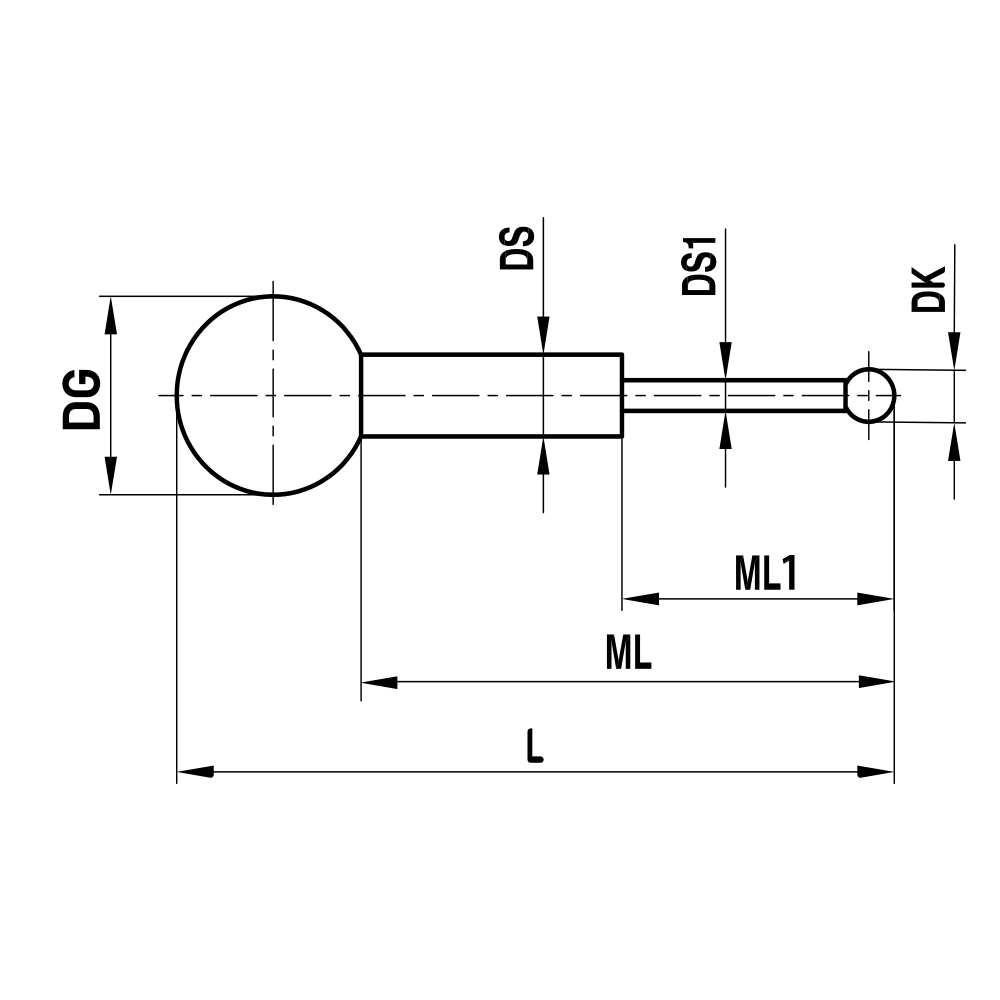

| Thread size: | M5 |
|---|---|
| DK: | 1.0 |
| L: | 17.5 |
| DG: | 4.0 |
| ML: | 13.5 |
| ML (1): | 5.0 |
| DS: | 1.0 |
| DS (1): | 0.8 |
| Stem Material: | carbide |
| Probe ball material: | ruby |
| Súly: | 0.4 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-8183-000, 600341-8163-000 |
| Renishaw-No.: | A-5555-0119 |
