KI M5 200 07 060
Termékszám:
KIM520007060
11
Suitable for Zeiss: 602030-8091-000, 000000-1165-630
Suitable for Zeiss: 602030-8091-000, 000000-1165-630
KI M5 200 07 060
Termékszám:
KIM520007060

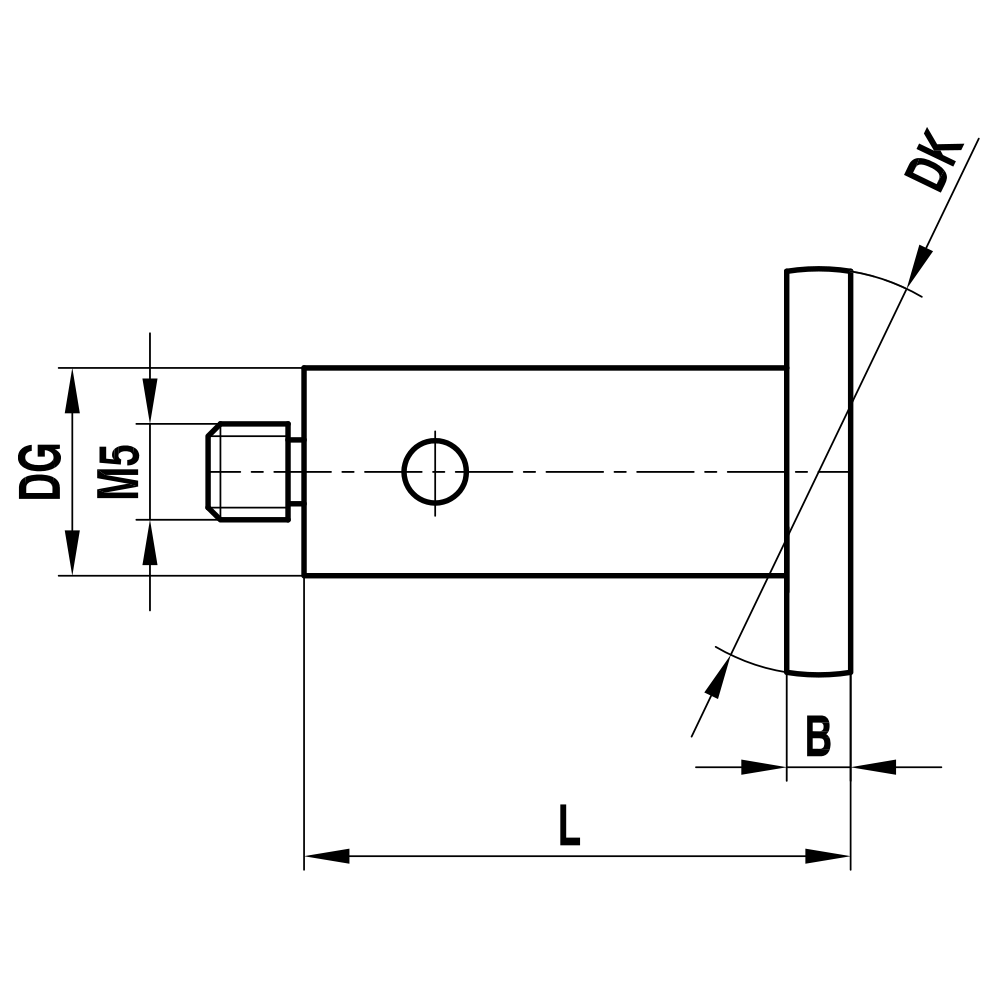

Disc Styli; base: titanium; stem: titanium; ball: stainless steel
Styli with a monolithic titanium body and stainless steel disc. These styli are often used to measure workpieces made of low hardness materials such as aluminium, plastics or unalloyed steels.
| Thread size: | M5 |
|---|---|
| DK: | 20.0 |
| L: | 60.0 |
| DG: | 7.0 |
| B: | 1.0 |
| Base Material: | titanium |
| Probe ball material: | stainless steel |
| Súly: | 8.9 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-8091-000, 000000-1165-630 |
| Renishaw-No.: | A-5555-0123 |
