KI M5 060 60 080
Termékszám:
KIM506060080
11
Suitable for Zeiss: 600341-0206-000
Suitable for Zeiss: 600341-0206-000
KI M5 060 60 080
Termékszám:
KIM506060080

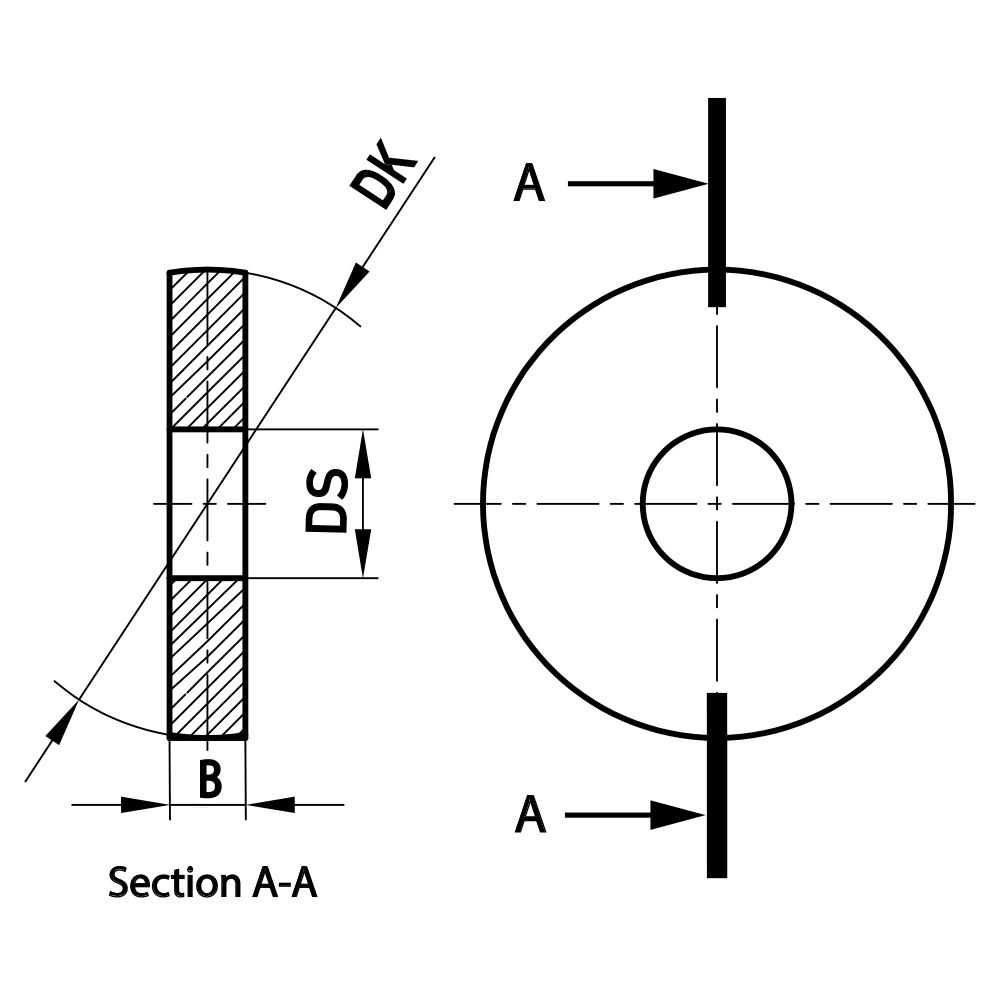

Disc Styli; ball: stainless steel
Hardened stainless steel disc styli. The 8.0mm diameter hole allows them to be mounted on extensions from the M5 range, for example, using mounting screws such as SIM500010017.
| Thread size: | M5 |
|---|---|
| DK: | 60.0 |
| DS: | 8.0 |
| B: | 6.0 |
| Thread / bore diameter: | 8.0 |
| Probe ball material: | stainless steel |
| Súly: | 60.5 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-0206-000 |
| Renishaw-No.: | A-5555-0208 |
