KI M5 040 15 M50
Termékszám:
KIM504015M50
11
Suitable for Zeiss: 602030-0004-000
Suitable for Zeiss: 602030-0004-000
KI M5 040 15 M50
Termékszám:
KIM504015M50
Disc Styli; ball: stainless steel
Hardened stainless steel styli. The M5 internal thread allows direct mounting to e.g. M5 range extensions.

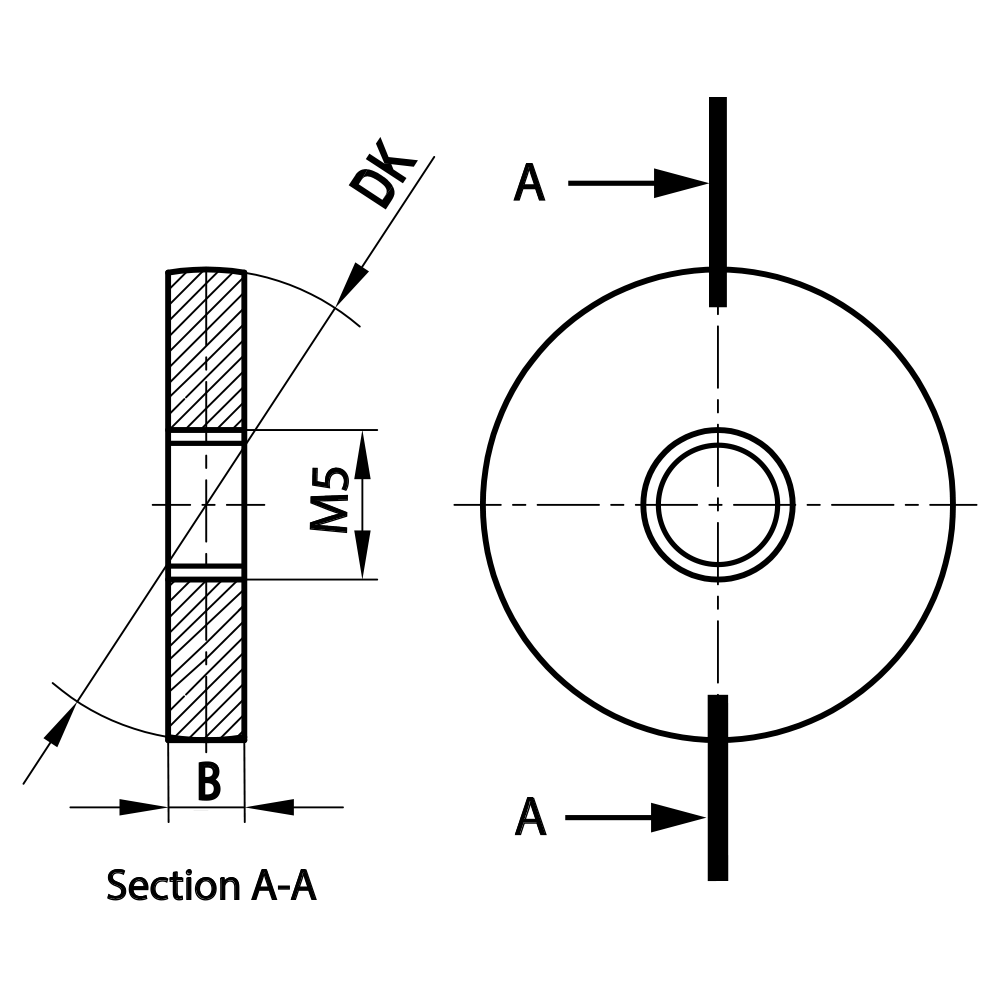

| Thread size: | M5 |
|---|---|
| DK: | 15.0 |
| A: | M5 |
| B: | 4.0 |
| Thread / bore diameter: | M5 |
| Probe ball material: | stainless steel |
| Súly: | 4.8 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-0004-000 |
| Renishaw-No.: | A-5555-0196 |
