KH M5 080 12 056
Termékszám:
KHM508012056
11
KH M5 080 12 056
Termékszám:
KHM508012056

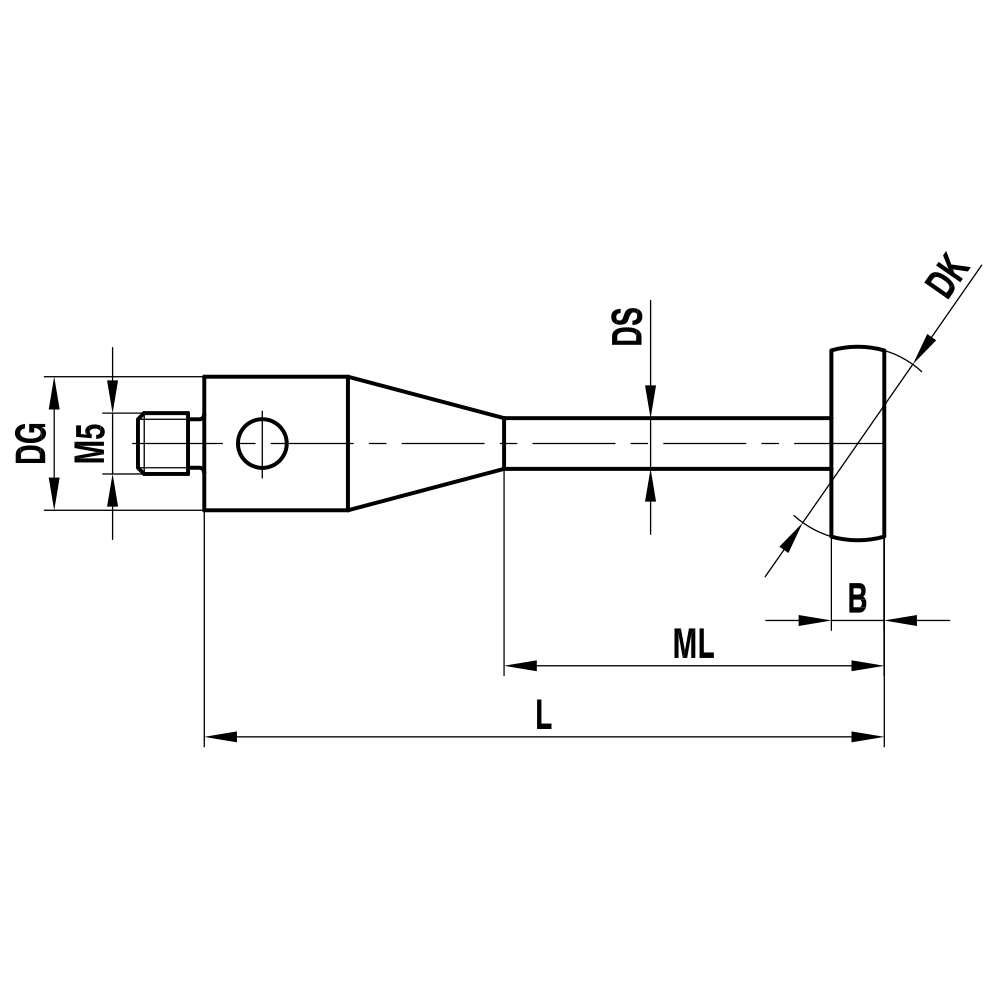

Disc Styli; base: stainless steel; stem: carbide; ball: stainless steel
These styli are available with tungsten carbide or stainless steel stem and stainless steel disc. They are often used to measure softer materials such as aluminium, plastics or non-alloy steels.
| Thread size: | M5 |
|---|---|
| DK: | 8.0 |
| L: | 57.0 |
| DG: | 12.0 |
| ML: | 46.0 |
| DS: | 2.5 |
| B: | 1.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | stainless steel |
| Súly: | 10.8 |
| Compatible with: | Hexagon |
| Hexagon-No.: | 060-694.152-011 |
