KH M5 000 11 022
Termékszám:
KHM500011022
11
Suitable for Zeiss: 626105-6901-001, 626105-6280-010 / (626105-6901-001)
Suitable for Zeiss: 626105-6901-001, 626105-6280-010 / (626105-6901-001)
KH M5 000 11 022
Termékszám:
KHM500011022

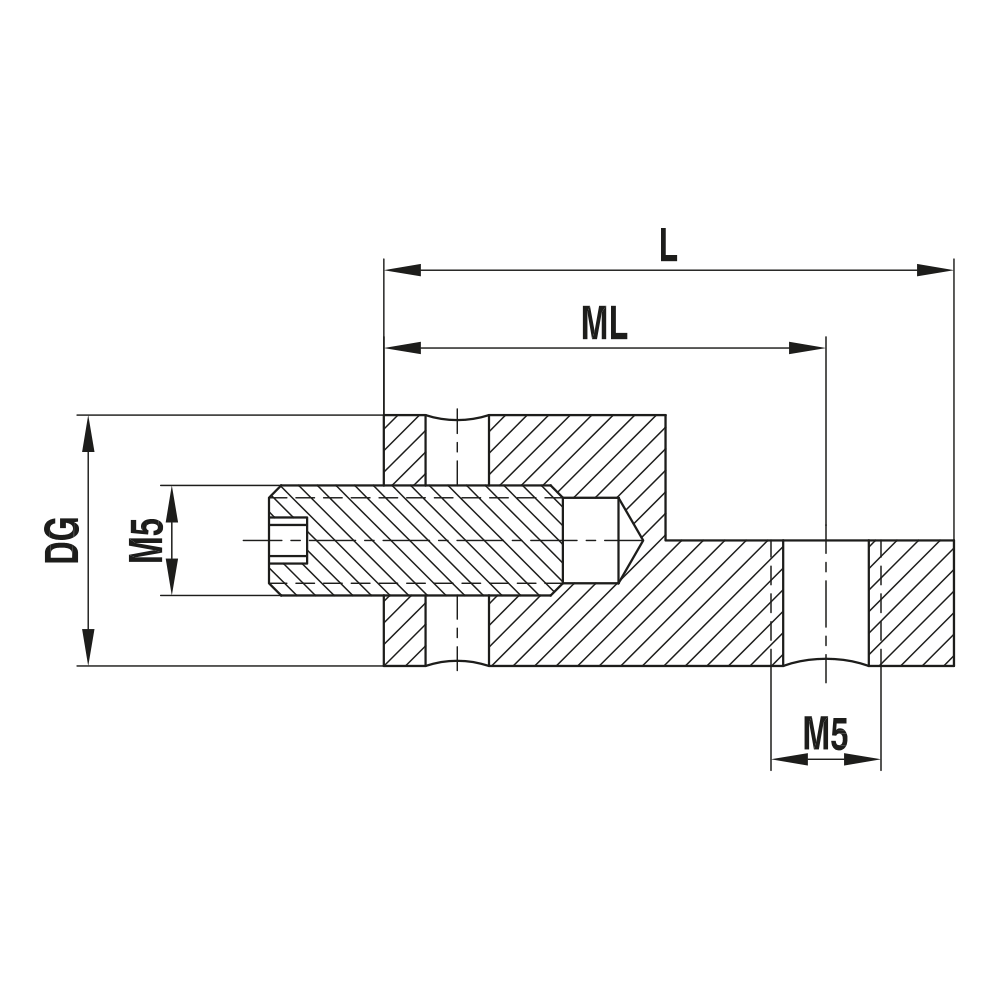

Adaptors / Holders; base: titanium
Stylus holders can be used to mount L styli with any stylus from the M5 series. Components with a rotary function are required for rotary alignment, e.g., swivel DTM500011029.
| Thread size: | M5 |
|---|---|
| L: | 22.5 |
| DG: | 11.0 |
| ML: | 17.0 |
| Base Material: | titanium |
| Súly: | 6 |
| Compatible with: | Hexagon, Zeiss |
| Zeiss No.: | 626105-6901-001, 626105-6280-010 / (626105-6901-001) |
| Hexagon-No.: | M00-1126-004-000 |
