FH M5 015 11 044
Termékszám:
FHM501511044
11
Suitable for Zeiss: 602030-8065-000
Suitable for Zeiss: 602030-8065-000
FH M5 015 11 044
Termékszám:
FHM501511044
39,00 EUR*
Elérhető, szállítási idő 1-3 days

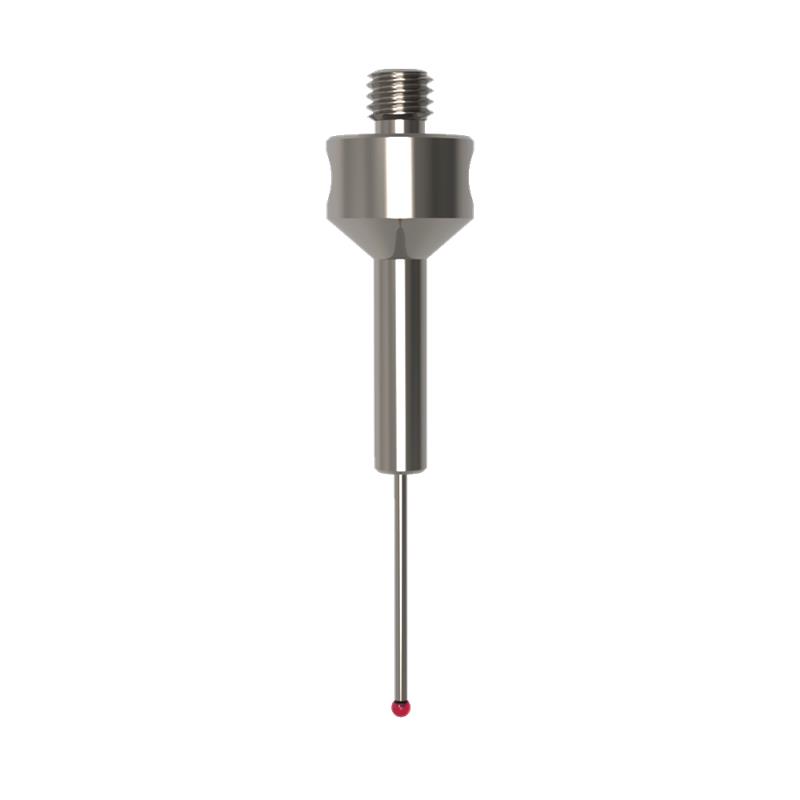

Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus with stepped, hardened body
The tungsten carbide stem with extreme rigidity allows a wide range of dimensions.
High quality ruby balls from Ø1,35mm to Ø2,5mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

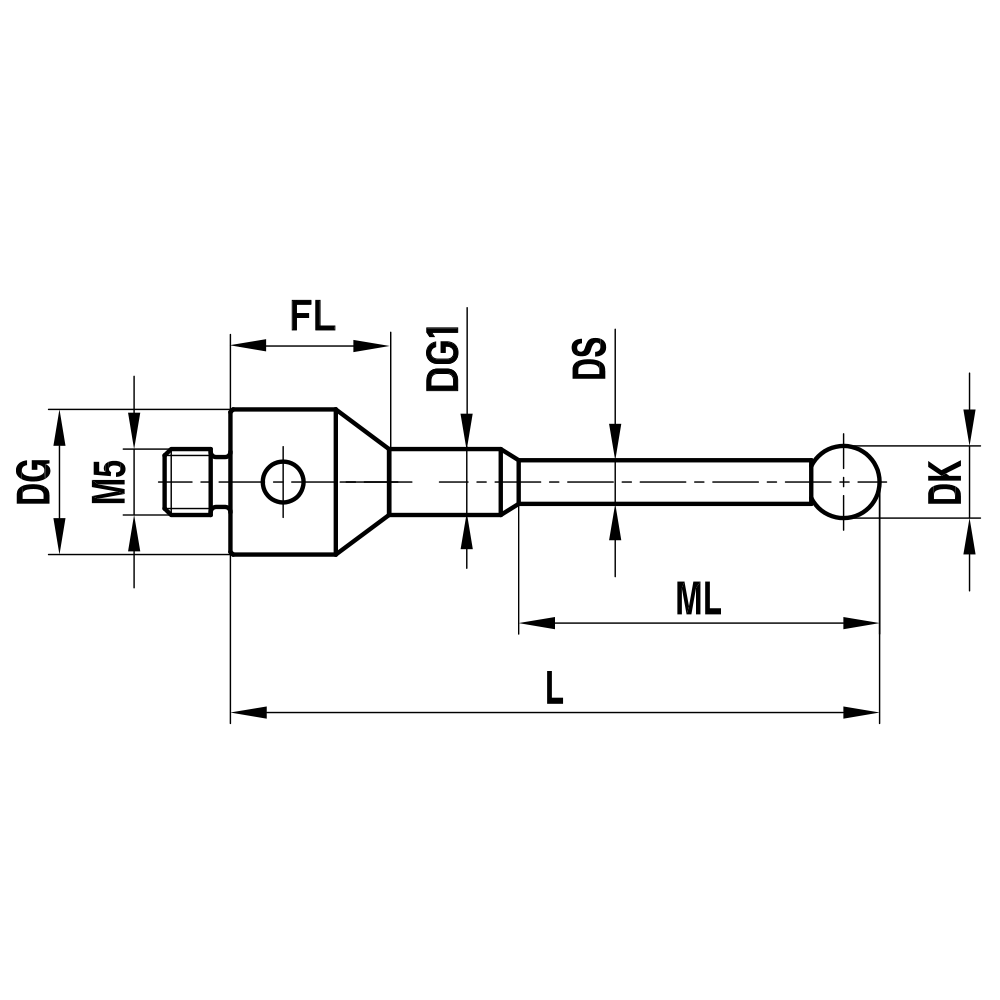

| Thread size: | M5 |
|---|---|
| DK: | 1.5 |
| L: | 44.0 |
| DG: | 11.0 |
| DG (1): | 4.0 |
| FL: | 9.0 |
| ML: | 19.0 |
| DS: | 1.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 7.2 |
| Compatible with: | Hexagon, Renishaw, Zeiss |
| Zeiss No.: | 602030-8065-000 |
| Renishaw-No.: | A-5555-0057 |
| Hexagon-No.: | M00-1121-041-000 |
